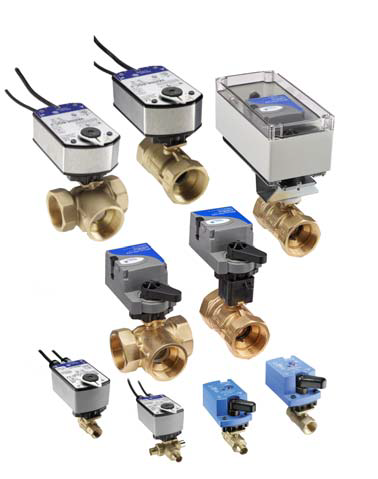

Johnson Controls VG1845FS+938GGC Ball Valve Assembly, 3 Way, 2 in.

Product Description

The Johnson Controls VG1845FS+938GGC is a three-way ball valve assembly measuring two inches. It features a forged brass body with a stainless steel ball, offering durability and reliability in various applications.

• Blow-out proof stem enhances user safety.
• Designed for hot water, chilled water, and glycol solutions.
• Electric actuator with a 177 lb-in spring return.

Product Highlights

This ball valve assembly is suited for HVAC systems, providing effective flow management.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1845FS+938GGC

Technical Specifications

• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage on In-Line Port A and Linear on Angle Port B
• Operating Conditions: -40 F to 140 F
• Electrical Connection: 48 inches 18 AWG appliance cable with integral 3/8 inches FMC connectors
• Auxiliary Switch: 2 x SPDT
• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution
