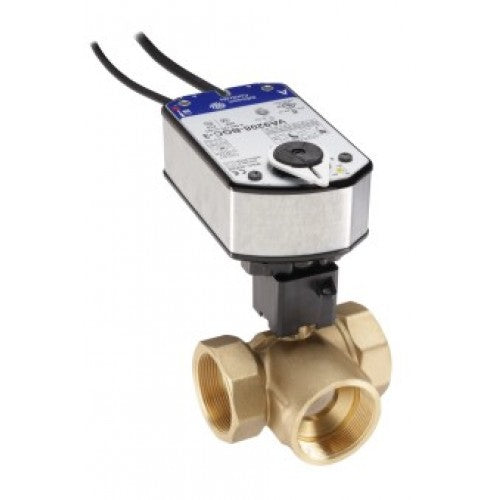

Johnson Controls VG1845ERH958GGC Ball Valve Assembly, 3 Way, 1-1/2 in

Product Description

The Johnson Controls VG1845ERH958GGC is a three-way ball valve assembly designed for HVAC systems. It features a forged brass body and stainless steel ball, ensuring durability and reliability. The electric actuator offers a spring return of 177 lb-in with a vacuum range of 24 VAC and 0 to 10 VDC proportional control.

• Blow-out proof stem enhances user safety
• Compatible with various fluids, including hot water and glycol solutions
• Operates under temperatures ranging from -40 F to 140 F

Product Highlights

This ball valve is ideal for controlling the flow in HVAC applications, providing efficient handling of water and glycol solutions.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1845ERH958GGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage on Port A, Linear on Port B
• Operating Conditions: -40 F to 140 F
• Electrical Connection: 48 in. 18 AWG cable with connectors
