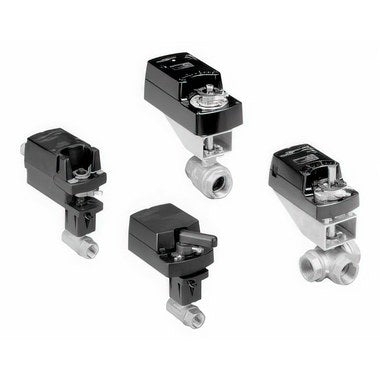

Johnson Controls VG1845ER Ball Valve 3 Way 1-1/2 in 29.2 Cv

Product Description

The Johnson Controls VG1845ER is a 3-way ball valve designed for industrial applications. This valve regulates the flow of hot or chilled water, making it suitable for HVAC systems. It features a stainless steel body for enhanced durability and resistance to corrosion.

• Maintenance-free design
• Performs without failure over 200,000 full stroke cycles even in contaminated water
• Provides accurate control with a rangeability of 500:1

Product Highlights

The VG1845ER operates efficiently under various load conditions, ensuring reliable temperature control in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1845ER

Technical Specifications

• Service: Hot water, chilled water, 50/50 glycol solutions, and 15 psig saturated steam for HVAC systems
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage of in-line port A and linear of angle port B
• Operating Conditions: -22°F to 280°F (-30°C to 140°C)
• Body Material: Stainless Steel
• Flow Capacity (Cv): 29.2
• Connection Type: Threaded
