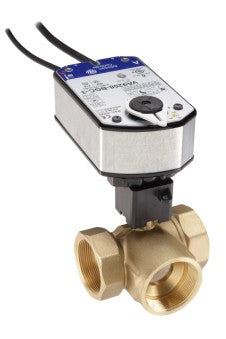

Johnson Controls VG1845DRH958BAA Three-Way Stainless Steel Trim NPT Ball Valve 1/2 to 2 Inches

Product Description

The Johnson Controls VG1845DRH958BAA is a robust three-way ball valve designed for regulating water and low-pressure steam in HVAC systems. Ideal for both hot and chilled water applications, this valve ensures precise flow control compliant with various controller demands.

• Constructed from high-strength forged brass, ensuring durability and a high pressure tolerance.
• Compatible with multiple Johnson Controls electric actuators for versatile control options.
• Efficient design suitable for pipe sizes from 1/2 inch to 2 inches.

Product Highlights

Part of the VG1000 Series, this valve integrates seamlessly with Johnson Controls actuators, including the VA9104, M9106, M9109, and M9100 for non-spring return mechanisms, as well as the VA9203 and VA9208 models for spring-return applications.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1845DRH958BAA
• Type: Ball Valve

Technical Specifications

• Material: Forged Brass
• Connection Type: NPT
• Pressure Rating: 580 psig static
• Size Range: 1/2 inch to 2 inches
