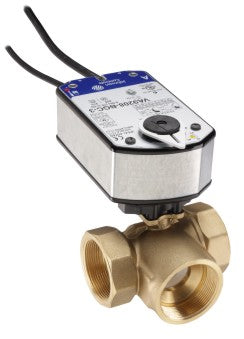

Johnson Controls VG1845DR+948GGA Ball Valve Assembly 3 Way 1-1/4 in

Product Description

The Johnson Controls VG1845DR+948GGA is a three-way ball valve assembly designed for precision control in HVAC systems. This valve is suitable for hot and chilled water systems and can also handle a glycol solution.

• Maintenance-free design for long-lasting performance
• Handles over 200,000 full stroke cycles in contaminated water
• Offers accurate control under varying load conditions

Product Highlights

This ball valve assembly features a forged brass body with a stainless steel ball and a blowout-proof stem, making it durable and reliable.

Product Information

Standard Information

• Brand: Johnson Controls
• Part #: VG1845DR+948GGA

Technical Specifications

• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage on the in-line port A and linear of the angle port B
• Operating Conditions: -40 F to 140 F
• Electrical Connection: 120 inches, 19 AWG plenum cable
• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution
