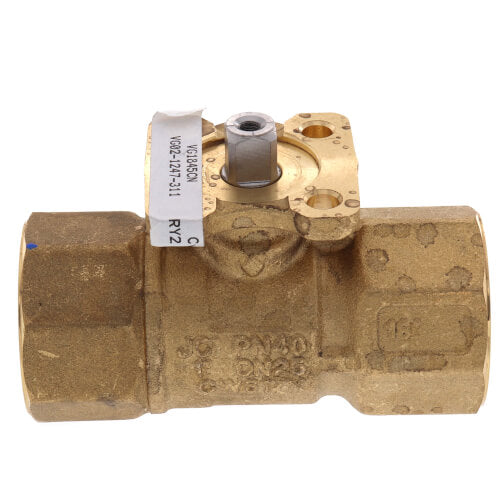

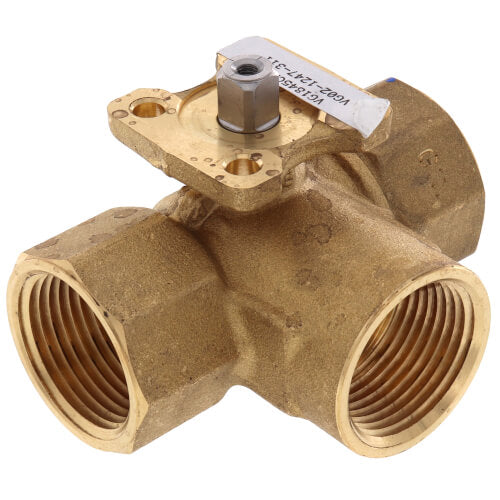

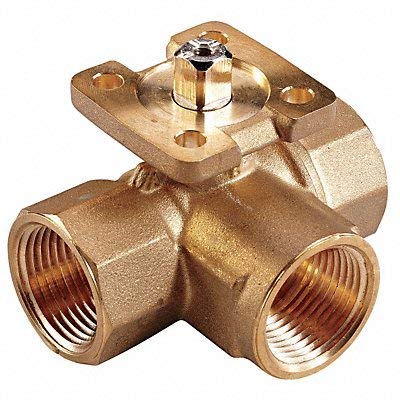

Johnson Controls VG1845CN Stainless Steel NPT Threaded End Connection Three-Way Ball Valves 11.7 Cv Port 1 Size

Product Description

The Johnson Controls VG1845CN is a stainless steel, three-way ball valve designed to regulate the flow of hot or chilled water, and low-pressure steam in HVAC systems. This valve is equipped with NPT threaded end connections and an 11.7 Cv port, making it suitable for a variety of heating, ventilating, and air conditioning applications.

• Graphite-reinforced PTFE seats
• 200 psi close-off pressure rating
• Leak-free EPDM double O-ring steam seal

Product Highlights

This valve features graphite-reinforced PTFE seats for durability and a 200 psi close-off pressure rating which ensures a tight shutoff. The EPDM double O-ring steam seal provides a leak-free seal that has been tested for reliability after 200,000 cycles in iron-oxide contaminated water.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1845CN

Technical Specifications

• Material: Stainless Steel
• Valve Type: 3-Way
• Connection Type: NPT Threaded
• Port Size: 1 inch
• Flow Capacity (Cv): 11.7
• Closeoff Pressure: 200 psi
• Safe Working Water PSI: 580 psi
• Safe Working Steam PSI: 15 psi with thermal spacer
• Max Water Temperature: 284 degrees Fahrenheit
• For Use With: M9000 or VA9000 Series Actuators
• Power Source: Electric Actuator
• Includes: Valve Only
