Johnson Controls VG1845BNH943GGA Ball Valve Assembly 24 VAC (3/4 in.) 011066201129830

JOHNSON CONTROLS
Brand: JOHNSON CONTROLS
SKU: VG1845BNH943GGA
Availability: In Stock

Ships same day if ordered by 12 pm
$439.76
$439.76
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

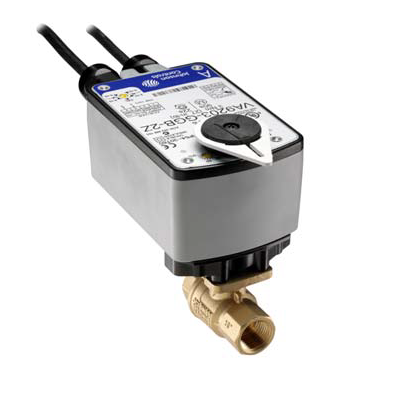

The Johnson Controls VG1845BNH943GGA is a 3/4 in. three-way ball valve assembly with a direct-mount electric actuator designed for HVAC water control. The assembly features a forged brass body, stainless steel ball, blowout-proof stem, 11.7 Cv flow coefficient, 24 VAC supply, and 0 to 10 VDC proportional control. It is rated for hot and chilled water service and includes a spring-return actuator for fail-safe positioning.

  • Direct-mount electric actuator with spring return, 27 lb-in torque; control signal 0 to 10 VDC and 24 VAC supply
  • Forged brass body, stainless steel ball, blowout-proof stem; Cv 11.7 (A port) with equal-percentage/linear flow characteristic
  • Power consumption 5.1 VA running, 2.8 VA holding; electrical lead: 120 in. 19 AWG plenum cable with integral 3/8 in. FMC connectors

Product Highlights

3/4 in. three-way forged brass ball valve assembly, 11.7 Cv, 24 VAC proportional spring-return actuator, NPT connection

Product Information

Standard Information

  • Brand: JOHNSON CONTROLS
  • Manufacturer Part Number: VG1845BNH943GGA
Technical Specifications
Brand
Johnson Controls
Manufacturer Part Number
VG1845BNH943GGA
Series
VG1000
Product Type
3-way ball valve assembly
Valve Size
3/4 in. (0.75 in.)
Number of Ways
3-way
Connection
NPT
Flow Coefficient (Cv) A Port
11.7
Flow Coefficient (Cv) B Port
5.8
Flow Characteristic
Equal percentage on in-line port A; linear on angle port B
Body Material
Forged brass
Ball Material
Stainless steel
Ball and Stem (alternate)
Chrome-plated brass
Stem
Blowout-proof stem
Seat Material
Graphite-reinforced PTFE (15% graphite)
Actuator Type
Direct-mount electric actuator, proportional with spring return
Actuator Voltage / Supply Voltage
24 VAC (24 V compatible)
Control Signal
0 to 10 VDC
Spring Return Torque
27 lb-in
Runtime
Approximately 90 seconds
Power Consumption
5.1 VA running, 2.8 VA holding
Close-Off Pressure / Close-Off Rating
200 psig
Static Pressure Rating
580 psig
Rangeability
500:1
Cycle Life
Maintenance-free design >200,000 full stroke cycles
Operating Temperature (ambient)
-22 F to 140 F (-30 C to 60 C)
Fluid Temperature Range
23 to 203 F (-5 to 95 C)
Housing / Enclosure Rating
NEMA 2, IP54
Electrical Connections
120 in. 19 AWG plenum cable with integral 3/8 in. FMC connectors
Compatible Actuators
VA9104, M9106, M9109, M9100 (non-spring-return); VA9203, VA9208 (spring-return)
Trim
Stainless steel
Service / Application
Hot water, chilled water, and 50/50 glycol solution for HVAC systems
Alternate Part Number
011066201129830
