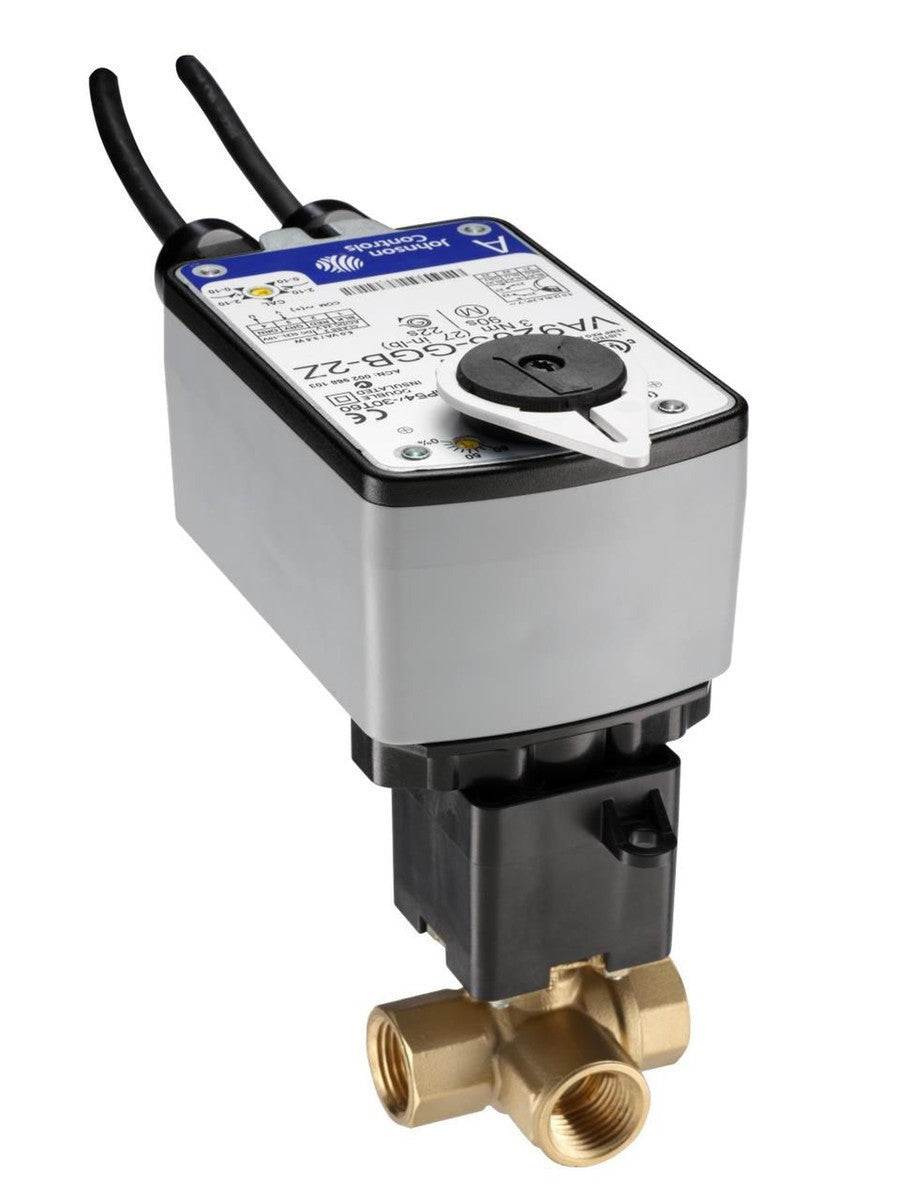

Johnson Controls VG1845BNH923GGA Ball Valve Assembly 24 VAC (3/4 in.)

Product Description

Johnson Controls VG1845BNH923GGA is a 3-way, 3/4 in. ball valve assembly with a direct-mount electric proportional spring-return actuator operating at 24 VAC. The forged brass body and stainless steel ball provide an 11.7 Cv flow coefficient for HVAC hot and chilled water service, with 0 to 10 VDC proportional control, equal-percentage/linear flow characteristics, and an enclosure rated NEMA 2/IP54 for typical mechanical room conditions.

• 3/4 in. 3-way forged brass ball valve, Cv 11.7, NPT connection; stainless steel ball and blowout-proof stem
• Direct-mount proportional spring-return actuator, 27 lb-in torque; control 0 to 10 VDC, supply 24 VAC; power 5.1 VA running, 2.8 VA holding
• Service for hot water, chilled water, and 50/50 glycol; close-off 200 psig; operating range -22 F to 140 F (-30 C to 60 C); NEMA 2/IP54

Product Highlights

Modulating 3-way valve assembly with 11.7 Cv, forged brass body, proportional 24 VAC spring-return actuator, 0-10 VDC control, and HVAC service rating.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BNH923GGA
