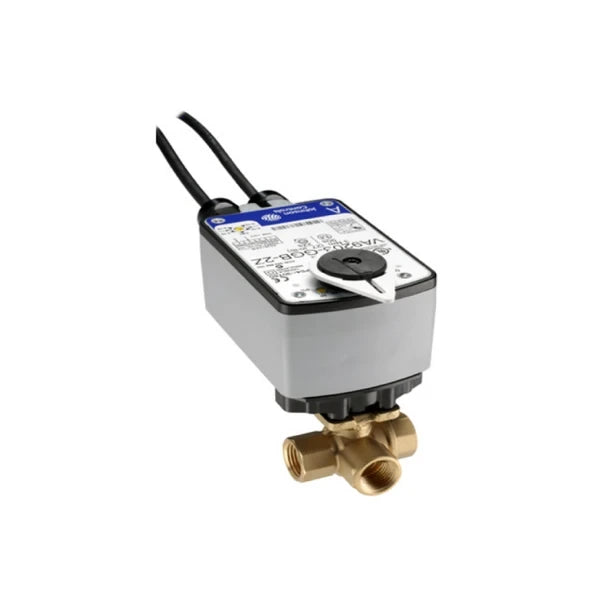

Johnson Controls VG1845BNH923BUA Ball Valve Assembly 85-264 Vac (3/4 in) VA9203-BUA-2

JOHNSON CONTROLS
Brand: JOHNSON CONTROLS
SKU: VG1845BNH923BUA
Availability: In Stock

Ships same day if ordered by 12 pm
$386.12
$386.12
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Johnson Controls VG1845BNH923BUA is a 3/4 in three-way ball valve assembly with a direct-mount electric actuator for on/off HVAC control. The assembly provides an 11.7 Cv flow coefficient, forged brass body, stainless steel ball and blowout-proof stem, NPT connections, and a spring-return actuator rated 85-264 Vac with 27 lb-in torque.

  • 3/4 in three-way ball valve, Cv 11.7; equal-percentage characteristic on in-line port A and linear on angle port B; NPT connection
  • Forged brass body with stainless steel ball and blowout-proof stem; close-off pressure 200 psig; static pressure rating 580 psig
  • Direct-mount electric actuator, 27 lb-in spring return, 85-264 Vac input; power consumption 0.06 A running, 0.02 A holding; NEMA 2 / IP54

Product Highlights

3-way 3/4 in ball valve assembly, 11.7 Cv, forged brass body, direct-mount 85-264 Vac spring-return actuator

Product Information

Standard Information

  • Brand: JOHNSON CONTROLS
  • Manufacturer Part Number: VG1845BNH923BUA
  • Country of Origin: US
Technical Specifications
Brand
Johnson Controls
Manufacturer Part Number
VG1845BNH923BUA
Series
VG1000
Product Type
3-way ball valve assembly
Valve Size
3/4 in (0.75 in)
Connection Type
NPT
Flow Coefficient (Cv)
11.7
Cv A/B
11.7 / 5.8 (A/B port reported)
Body Material
Forged brass
Ball and Stem Material
Stainless steel ball; blowout-proof stem (stainless steel)
Seat Material
Graphite-reinforced PTFE (15% graphite)
Actuator Type
Direct-mount electric actuator, spring return
Actuator Model (referenced)
VA9203-BUA-2
Actuator Input Voltage
85-264 Vac
Actuator Torque
27 lb-in (spring return)
Actuator Action
On/Off (2-position) / spring return
Power Consumption (Actuator)
0.06 A running, 0.02 A holding
Housing / Enclosure Rating
NEMA 2, IP54
Close-Off Pressure
200 psig
Static Pressure Rating
580 psig
Rangeability
500:1
Cycle Life
Maintenance-free in excess of 200,000 full stroke cycles
Flow Characteristic
Equal percentage on in-line port A; linear on angle port B
Intended Media
Hot water, chilled water, 50/50 glycol solution (some models suitable for low-pressure steam)
Operating Temperature
-22 to 140 F (-30 to 60 C)
Electrical Connections
48 in. 18 AWG appliance cables with integral 3/8 in FMC connectors
Mounting Type
Direct mount to compatible Johnson Controls actuators (factory or field mount)
Country of Origin
US
Item Count
1
