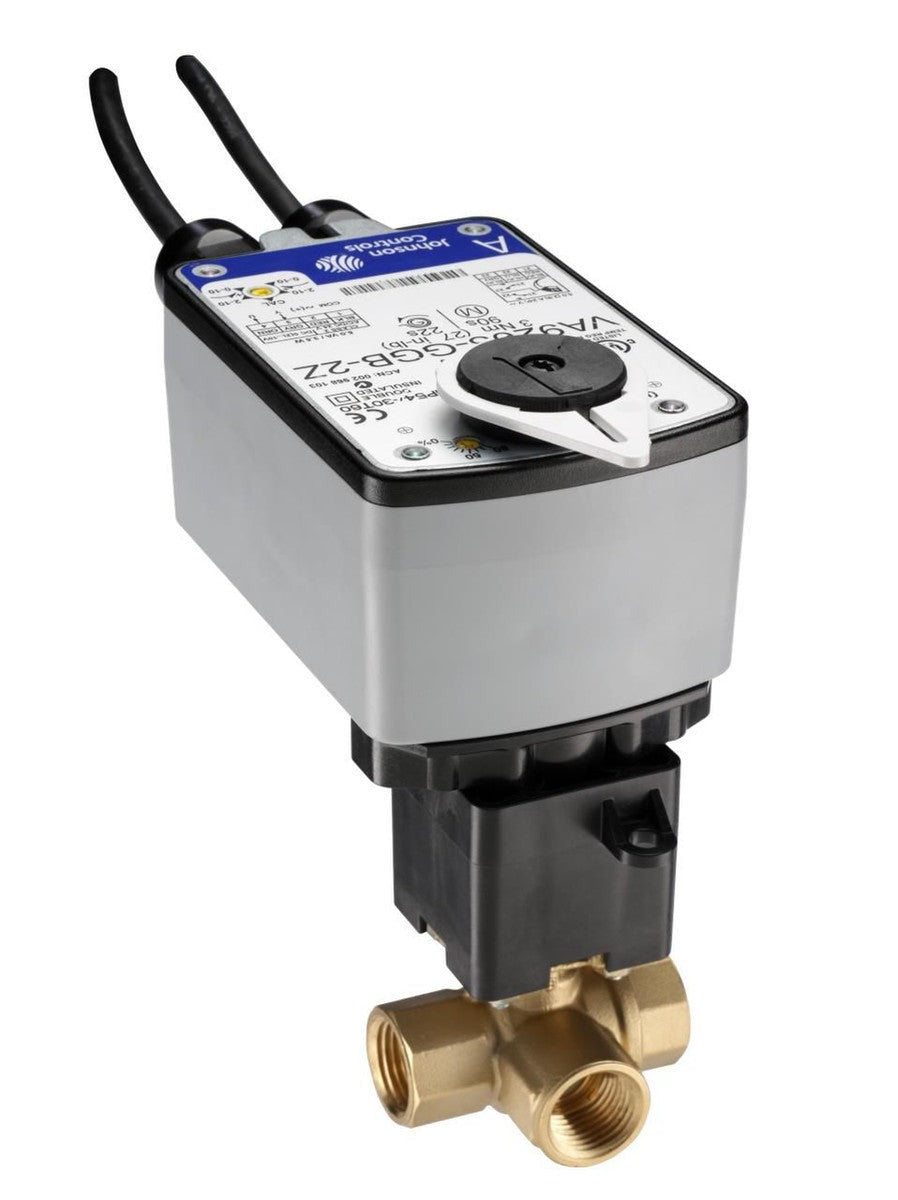

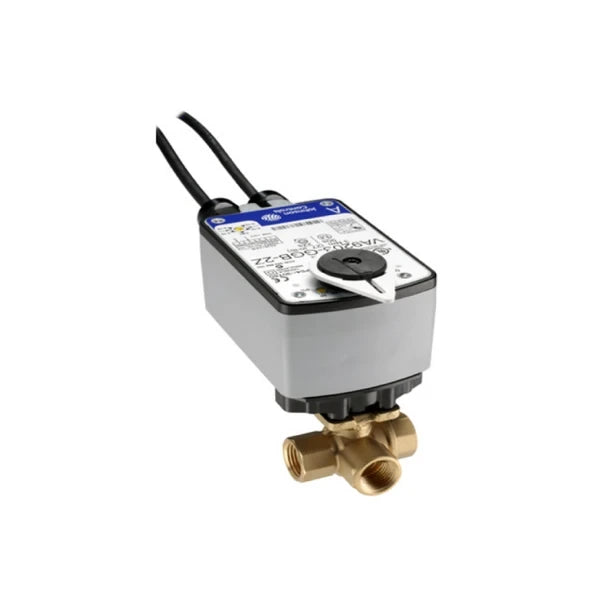

Johnson Controls VG1845BNH923BGB 3-Way Ball Valve Assembly 24 VAC (3/4 in)

Product Description

Johnson Controls VG1845BNH923BGB is a 3/4 in, three-way ball valve assembly with an integrated 24 VAC spring-return electric actuator for on/off HVAC control. The valve features a forged brass body, stainless steel ball, blowout-proof stem, and an 11.7 Cv flow coefficient. It is suitable for hot water, chilled water, or 50/50 glycol service and has a close-off pressure of 200 psig and NEMA 2/IP54 housing.

• 3-way 3/4 in NPT ball valve with 11.7 Cv and forged brass body; stainless steel ball and blowout-proof stem
• Direct-mount electric actuator, 24 VAC on/off control, 27 lb-in spring-return torque; auxiliary 1 SPDT switch
• Power consumption 5.0 VA running / 2.5 VA holding; flow characteristic: equal percentage (port A) and linear (port B); operating -22 F to 140 F

Product Highlights

3/4 in three-way HVAC ball valve assembly with 24 VAC spring-return actuator, 11.7 Cv flow coefficient, forged brass body, stainless steel trim, auxiliary switch, and NEMA 2/IP54 enclosure.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BNH923BGB
