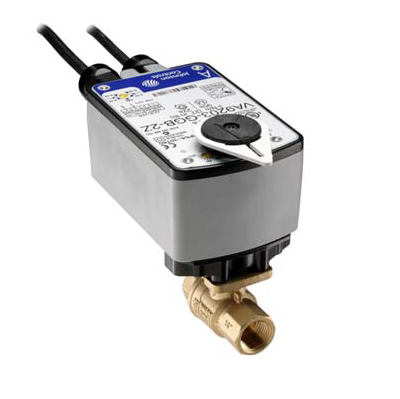

Johnson Controls VG1845BNH923BGA Ball Valve Assembly 3-Way 24 VAC (3/4 in.)

Product Description

Johnson Controls VG1845BNH923BGA is a 3-way, 3/4 in. NPT ball valve assembly with a 24 VAC direct-mount electric actuator providing on/off, 2-position spring-return operation. The valve has an 11.7 Cv rating, forged brass body, stainless steel ball, blowout-proof stem, and NEMA 2/IP54 enclosure. It is intended for HVAC hot water, chilled water, and 50/50 glycol service and includes 48 in. 18 AWG appliance cable connections.

• 3-way 3/4 in. NPT ball valve with 11.7 Cv; forged brass body and stainless steel ball
• Direct-mount electric actuator: 27 lb-in torque, 24 VAC, 2-position spring-return (on/off); power 5.0 VA running, 2.5 VA holding
• Close-off pressure 200 psig; static pressure rating 580 psig; equal-percentage flow on in-line port A and linear on angle port B; operating -22 F to 140 F (-30 C to 60 C)

Product Highlights

3-way 3/4 in. NPT ball valve assembly, 11.7 Cv, forged brass body, stainless steel ball, 24 VAC 27 lb-in spring-return actuator for HVAC hot/chilled water and glycol systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BNH923BGA
