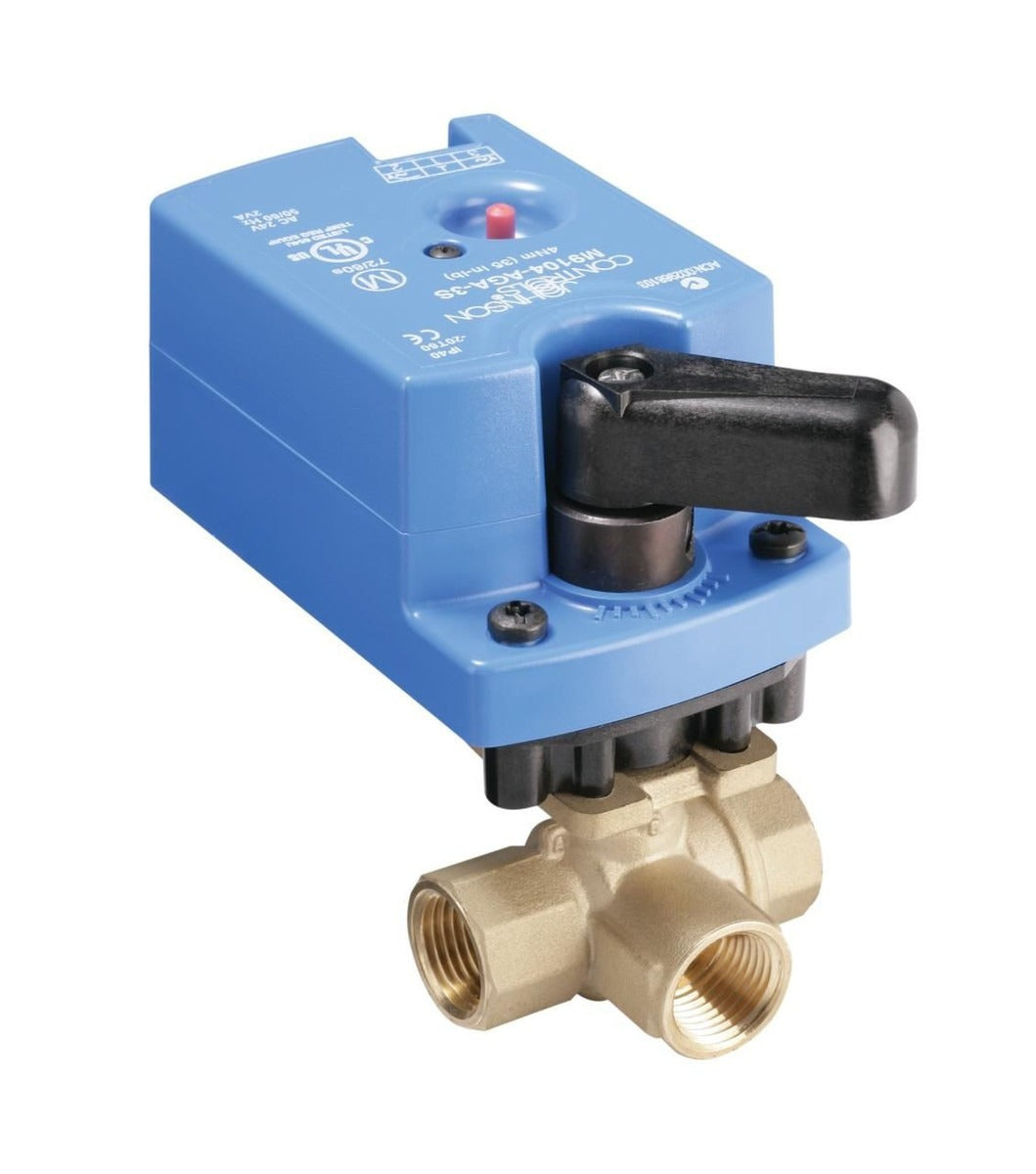

JOHNSON CONTROLS Johnson Controls VG1845BN+9A4GGA Ball Valve Assembly 24 VAC (3/4 in) VG1845BN+9A4GGA
JOHNSON CONTROLS Johnson Controls VG1845BN+9A4GGA Ball Valve Assembly 24 VAC (3/4 in) VG1845BN+9A4GGA

Johnson Controls VG1845BN+9A4GGA Ball Valve Assembly 24 VAC (3/4 in) VG1845BN+9A4GGA

JOHNSON CONTROLS
Brand: JOHNSON CONTROLS
SKU: VG1845BN+9A4GGA
Availability: In Stock

Ships same day if ordered by 12 pm
$359.50
$359.50
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Johnson Controls VG1845BN+9A4GGA is a 3-way, 3/4-inch NPT ball valve assembly with a direct-mount 24 VAC proportional electric actuator. The forged brass body with stainless steel ball and blowout-proof stem provides 11.7 Cv (A port) and 5.8 Cv (B port), 200 psig close-off, and NEMA 2/IP42 housing. It accepts 0–10 VDC control, consumes 2.9 VA, and is intended for hot water, chilled water, and 50/50 glycol HVAC systems.

  • 3-way 3/4 in NPT forged brass body with stainless steel ball and blowout-proof stem
  • Direct-mount proportional electric actuator, 24 VAC, 35 lb-in torque, 0–10 VDC control, 2.9 VA
  • 11.7 Cv (A) / 5.8 Cv (B), 200 psig close-off, equal-percentage flow on port A and linear on port B; operating -4 F to 140 F

Product Highlights

Proportional 24 VAC actuator for HVAC water and glycol applications; NEMA 2/IP42 enclosure; direct-mount 3-way valve with 11.7 Cv

Product Information

Standard Information

  • Brand: JOHNSON CONTROLS
  • Manufacturer Part Number: VG1845BN+9A4GGA
Technical Specifications
Brand
Johnson Controls
MPN
VG1845BN+9A4GGA
Valve type
3-way ball valve
Size
3/4 inch
End Connection
3/4 in NPT (threaded NPT taper)
Body Material
Forged brass
Ball Material
Stainless steel
Stem
Blowout-proof stem
Cv
11.7 (A port) / 5.8 (B port)
Actuator Mount
Direct mount electric actuator
Actuator Model
VA9104-GGA-2S
Actuator Torque
35 lb-in
Actuator Type
Non-spring return, proportional
Control Signal
0–10 VDC (also supports 4–20 mA where noted)
Actuator Voltage
24 VAC
Power Consumption
2.9 VA
Enclosure Rating
NEMA 2, IP42
Close-Off Pressure
200 psig
Flow Characteristic
Equal-percentage on in-line port A; linear on angle port B
Service
Hot water, chilled water, 50/50 glycol solution for HVAC systems
Operating Temperature
-4 F to 140 F (-20 C to 60 C)
Electrical Connection
48 in UL 444 Type CMP plenum rated cable with 19 AWG conductors, 0.25 in ferrule ends, connector for 3/8 in flexible metal conduit
Runtime
60 seconds
