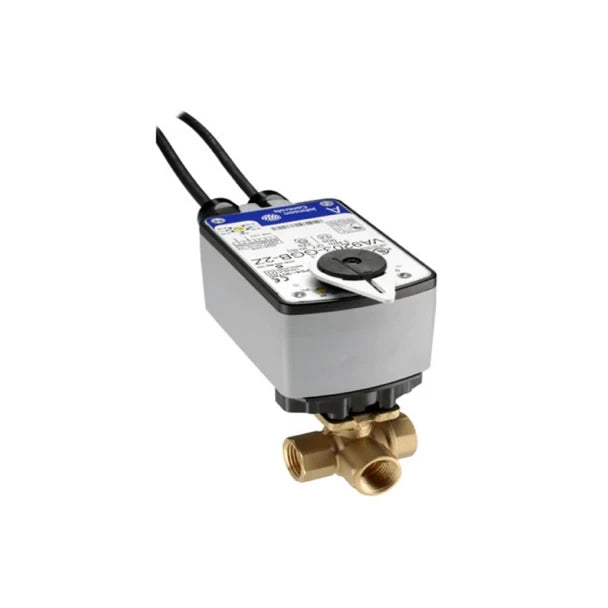

Johnson Controls VG1845BN+943GGA Ball Valve Assembly 24 VAC (3/4 in)

Product Description

Johnson Controls VG1845BN+943GGA is a 3/4 in three-way ball valve assembly with a direct-mount electric actuator for HVAC fluid control. The assembly has a forged brass body, stainless steel ball and blowout-proof stem, an 11.7 Cv flow coefficient on the A port, and 0 to 10 VDC proportional control at 24 VAC. It is rated for hot water, chilled water and 50/50 glycol service and a 200 psig close-off rating.

• Forged brass body with stainless steel ball and blowout-proof stem; NPT connections; Cv: 11.7 (A) / 5.8 (B).
• Direct-mount electric actuator with 27 lb-in spring return, 24 VAC input, 0 to 10 VDC proportional control and 0-10 V feedback; runtime approximately 90 seconds.
• Close-off pressure 200 psig; operating range -22 F to 140 F (-30 C to 60 C); power consumption 5.1 VA running and 2.8 VA holding; NEMA 2, IP54; 120 in 19 AWG plenum cable with 3/8 in FMC connectors.

Product Highlights

3/4 in three-way forged brass ball valve with stainless-steel trim, direct-mount spring-return actuator, modulating 0–10 V control, 11.7 Cv (A) / 5.8 Cv (B), NPT connections for HVAC water and glycol systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BN+943GGA
