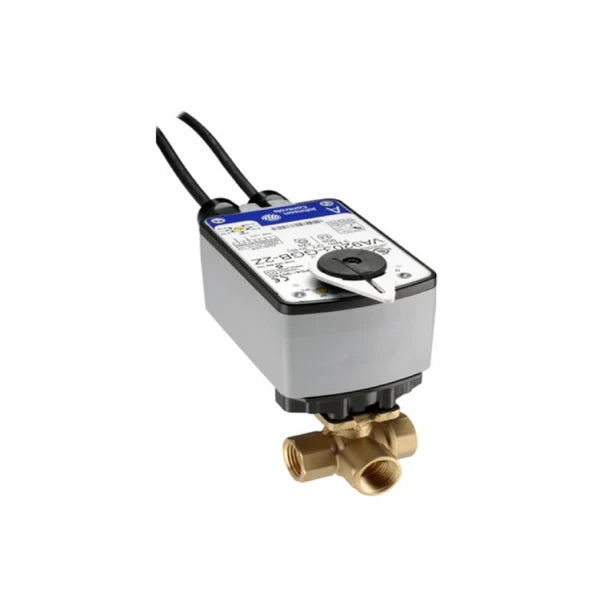

Johnson Controls VG1845BN+943BGB Ball Valve Assembly 24 Vac (3/4 In) VA9203-BGB-2

Product Description

Johnson Controls VG1845BN+943BGB is a three-way 3/4 in NPT ball valve assembly with a 24 Vac spring-return electric actuator designed to regulate flow in HVAC hot water, chilled water, and 50/50 glycol systems. The forged brass body with stainless steel ball and blowout-proof stem provides a Cv of 11.7, close-off pressure of 200 psig, and operating range from -22 F to 140 F (-30 C to 60 C).

• 3-way 3/4 in NPT ball valve with 11.7 Cv and stainless steel trim
• Direct-mount spring-return electric actuator, 27 lb-in torque, 24 Vac, on/off two-position control; includes 1 SPDT auxiliary switch
• Power consumption 5.0 VA running and 2.5 VA holding; electrical connections: 48 in 18 AWG appliance cables with 3/8 in FMC connectors

Product Highlights

Three-way 3/4 in NPT ball valve assembly, 11.7 Cv, forged brass body, stainless steel ball, 24 Vac spring-return actuator, 200 psig close-off pressure, for hot/chilled water and 50/50 glycol HVAC systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BN+943BGB
