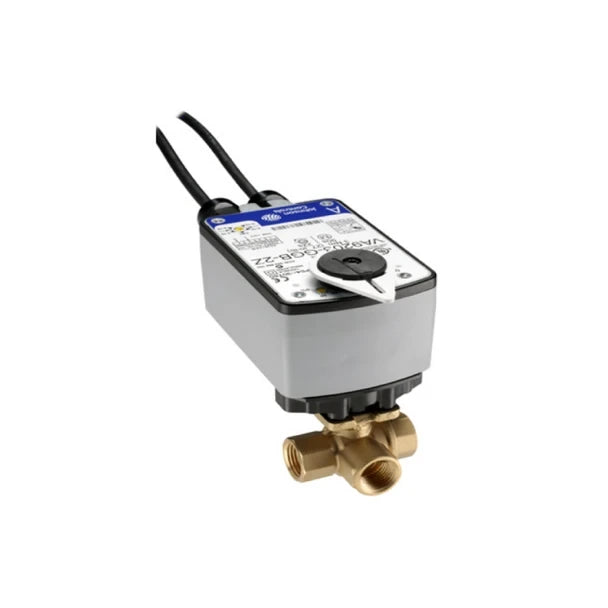

JOHNSON CONTROLS Johnson Controls VG1845BN+923BUA Ball Valve Assembly 85-264 VAC (3/4 In.) VA9203-BUA-2
JOHNSON CONTROLS Johnson Controls VG1845BN+923BUA Ball Valve Assembly 85-264 VAC (3/4 In.) VA9203-BUA-2

Johnson Controls VG1845BN+923BUA Ball Valve Assembly 85-264 VAC (3/4 In.) VA9203-BUA-2

JOHNSON CONTROLS
Brand: JOHNSON CONTROLS
SKU: VG1845BN+923BUA
Availability: In Stock

Ships same day if ordered by 12 pm
$362.07
$362.07
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Johnson Controls VG1845BN+923BUA is a 3-way ball valve assembly with a 3/4 in. NPT connection and an 11.7 Cv flow coefficient, furnished with a direct-mount spring-return electric actuator rated 85-264 VAC. The forged brass body has a stainless steel ball and blowout-proof stem, suitable for hot water, chilled water and 50/50 glycol HVAC systems. Operating range is -22 F to 140 F (-30 C to 60 C).

  • 3-way forged brass ball valve, 3/4 in. NPT, Cv 11.7 with stainless steel trim and blowout-proof stem
  • Direct-mount spring-return electric actuator, 27 lb-in torque; rated 85-264 VAC; power draw 0.06 A running, 0.02 A holding
  • Suitable for hot water, chilled water and 50/50 glycol HVAC systems; close-off pressure 200 psig; housing NEMA 2/IP54

Product Highlights

3/4 in. three-way forged brass ball valve with stainless steel trim, 11.7 Cv, spring-return actuator 85-264 VAC

Product Information

Standard Information

  • Brand: JOHNSON CONTROLS
  • Manufacturer Part Number: VG1845BN+923BUA
Technical Specifications
Brand
Johnson Controls
Manufacturer
Johnson Controls, Inc
Manufacturer Part Number
VG1845BN+923BUA
Product Type
Valve (VG1000 Series)
Valve Type
3-way ball valve
Size
3/4 in.
End Connection
3/4 in. NPT
Flow Coefficient (Cv)
11.7 (A port); 5.8 (B port reported in some sources)
Body Material
Forged brass
Ball Material
Stainless steel
Trim
Stainless steel
Stem Type
Blowout-proof stem
Actuator Type
Direct-mount electric actuator, spring-return (fail-safe)
Actuator Model
Typical/associated: VA9203-BUA-2 / 923BUA reference
Actuator Torque
27 lb-in (spring return)
Input Voltage
85-264 VAC
Power Consumption
0.06 A running, 0.02 A holding
Control Input
On/Off (2-position)
Flow Characteristic
Equal percentage on in-line port A; linear on angle port B (bypass)
Service / Media
Hot water, chilled water, 50/50 glycol solution (some references also list low-pressure steam for specific models) - low confidence for steam
Close-Off Pressure
200 psig
Static Pressure Rating
580 psig (forged brass body rating reported)
Operating Temperature
-22 F to 140 F (-30 C to 60 C)
Electrical Connections
48 in. 18 AWG appliance cables with integral 3/8 in. FMC connectors
Housing Rating
NEMA 2, IP54
Runtime
<75 seconds (actuator typical runtime reported)
Positions
2-position
Service Range Sizes
VG1000 Series available in 1/2 to 2 in. (DN15 to DN50)
