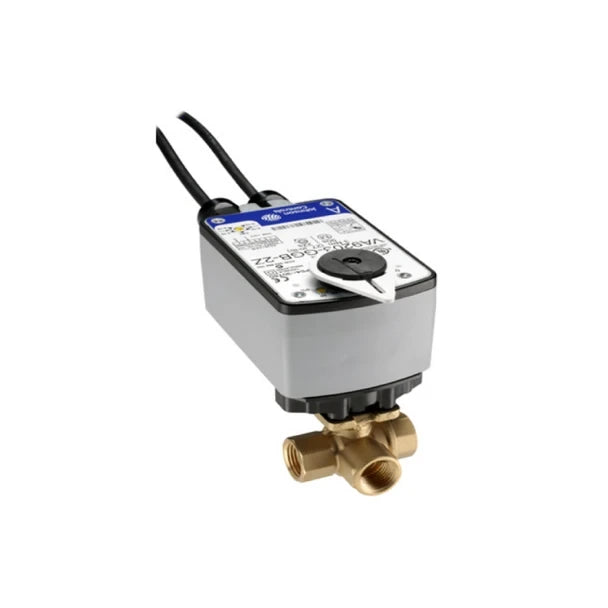

Johnson Controls VG1845BN+923BGB Ball Valve Assembly 24 VAC (3/4 in)

Product Description

Johnson Controls VG1845BN+923BGB is a 3-way, 3/4 in ball valve assembly with a direct-mount spring-return electric actuator rated for 24 VAC on/off control. The forged brass body and stainless steel ball provide an 11.7 Cv flow coefficient and a 200 psig close-off rating. It offers equal-percentage flow on the in-line port A and linear flow on the angle port B and is suitable for hot water, chilled water, and 50/50 glycol HVAC systems.

• Forged brass body with stainless steel ball and blowout-proof stem; Cv 11.7
• Direct-mount electric actuator, 27 lb-in spring return, 24 VAC on/off control; auxiliary 1 x SPDT
• NPT connection, close-off pressure 200 psig, NEMA 2 / IP54 enclosure rating; operating range -22 F to 140 F (-30 C to 60 C)

Product Highlights

3-way 3/4 in NPT ball valve, 11.7 Cv, direct-mount 24 VAC spring-return actuator, stainless steel trim for HVAC water and glycol service

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BN+923BGB
