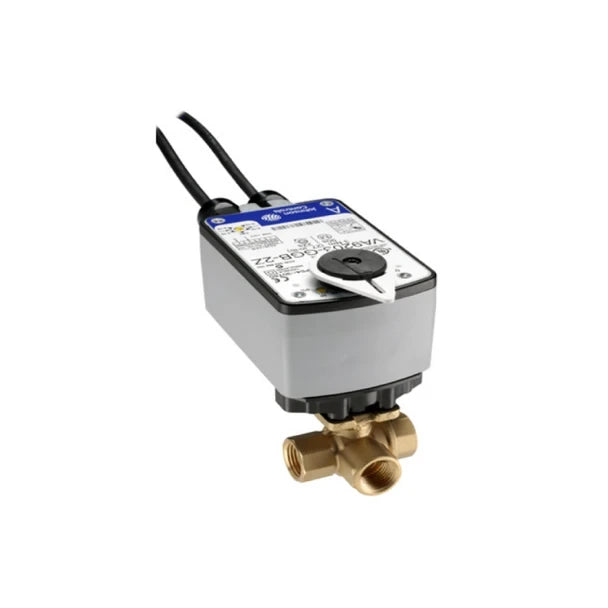

Johnson Controls VG1845BN+923BGA Ball Valve Assembly 24 VAC (3/4 in)

JOHNSON CONTROLS
Brand: JOHNSON CONTROLS
SKU: VG1845BN+923BGA
Availability: In Stock

Ships same day if ordered by 12 pm
$333.40
$333.40
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Johnson Controls VG1845BN+923BGA is a 3/4 in three-way ball valve assembly with an 11.7 Cv flow coefficient and a direct-mount spring-return electric actuator. It regulates hot or chilled water and 50/50 glycol in HVAC systems using 24 VAC on/off control. The valve features a forged brass body, stainless steel trim, blowout-proof stem, NPT connections, 200 psig close-off rating, and power consumption of 5.0 VA running and 2.5 VA holding.

  • Forged brass body with stainless steel ball/trim and blowout-proof stem; flow coefficient Cv = 11.7.
  • Direct-mount spring-return electric actuator, 27 lb-in torque; 24 VAC on/off control; power consumption 5.0 VA running, 2.5 VA holding.
  • NPT end connections, 200 psig close-off rating, operating temperature -22 F to 140 F; suitable for hot water, chilled water, and 50/50 glycol HVAC systems.

Product Highlights

3/4 in three-way HVAC ball valve with 11.7 Cv, forged brass body, stainless steel trim, and direct-mount spring-return actuator.

Product Information

Standard Information

  • Brand: JOHNSON CONTROLS
  • Manufacturer Part Number: VG1845BN+923BGA
Technical Specifications
Brand
Johnson Controls
Manufacturer Part Number
VG1845BN+923BGA
Product Type
Valve
Valve Type
3-way ball valve
Valve Size
3/4 in (0.75 in)
End Connections
NPT
Body Material
Forged brass
Trim Material
Stainless steel
Ball Material
Stainless steel
Stem
Blowout-proof
Flow Coefficient (Cv)
11.7
Flow Coefficient (Cv) A/B Ports
11.7/5.8 (A/B port)
Flow Characteristic
Equal percentage on in-line port A; linear on angle port B
Close-Off Pressure
200 psig
Static Pressure Rating
580 psig
Actuator Type
Direct-mount electric actuator (spring-return)
Compatible Actuators
VA9104, M9106, M9109, M9100 (non-spring-return); VA9203, VA9208 (spring-return)
Actuator Torque
27 lb-in spring return
Actuator Runtime
<75 seconds
Control Input Voltage
24 VAC (on/off)
Actuator Voltage Options
24 VAC/24 VDC; 85-264 VAC
Power Consumption
5.0 VA running; 2.5 VA holding
Electrical Connections
48 in. 18 AWG appliance cables with integral 3/8 in FMC connectors
Enclosure Rating
NEMA 2 (drip-proof)
Operating Temperature
-22 F to 140 F (-30 C to 60 C)
Application
Regulation of hot water, chilled water, and 50/50 glycol in HVAC systems
Cycle Life
Performs in excess of 200,000 full stroke cycles in iron-oxide contaminated water
Rangeability
500:1
Close-Off Rating
200 PSI
Sizes Available
1/2 to 2 in (DN15 to DN50)
