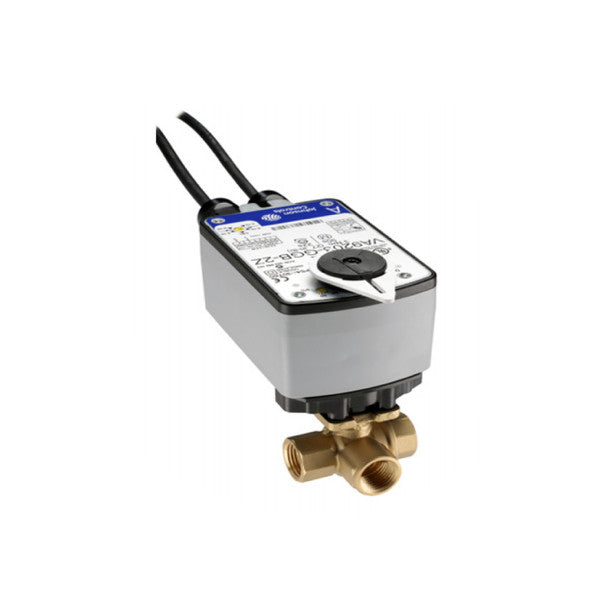

Johnson Controls VG1845BLH943BUA Ball Valve Assembly, 3 Way, 3/4 in.

Product Description

The JOHNSON CONTROLS VG1845BLH943BUA is a 3-way ball valve assembly with a 3/4 inch NPT connection and a 7.4 Cv flow coefficient. It features a forged brass body, stainless steel ball and blowout-proof stem, and a direct mount electric actuator with a 27 lb-in spring return. Operates on 85-264 VAC and is on/off type.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This valve assembly provides accurate control under all load conditions and is suitable for hot water, chilled water, and 50/50 glycol solutions in HVAC systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BLH943BUA
• Country of Origin: Unknown

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution For HVAC Systems
• Power Consumption: 0.06 Amp Running, 0.02 Amp Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage On The In-Line Port A (Coil) And Linear Of The Angle Port B (Bypass)
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
• CV: 7.4/4.7 A/B Port
• Trim: Stainless Steel
• Runtime: <75 Secs
• Voltage: 85-264vac
• Actuator: VA9203-BUA-2
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 0.75 in
• Valve Piping: 3-Way
• Close-Off Rating: 200 PSI
