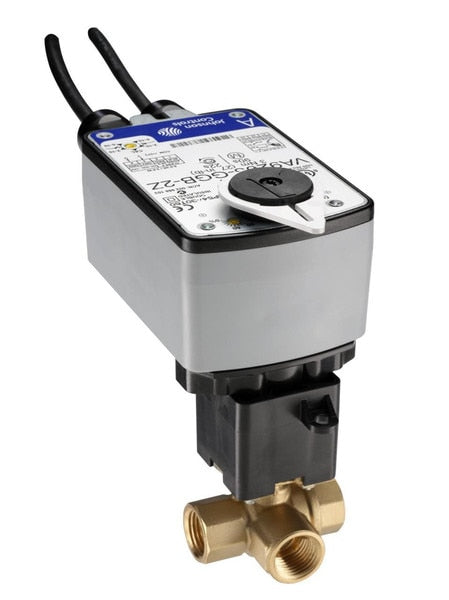

Johnson Controls VG1845BLH943BGA Ball Valve Assembly, 3 Way, 3/4 in.

Product Description

The JOHNSON CONTROLS VG1845BLH943BGA is a ball valve assembly designed for regulating the flow of hot or chilled water and, for some models, low-pressure steam in HVAC systems. It features a forged brass body, stainless steel ball and blowout-proof stem, and a direct mount electric actuator with a 27 lb-in spring return. Operates on 24 VAC, on/off.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This ball valve assembly provides accurate control under all load conditions with a maintenance-free design and high rangeability.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BLH943BGA
• Country of Origin: Unknown

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution For HVAC Systems
• Power Consumption: 5.0 VA Running, 2.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage On The In-Line Port A (Coil) And Linear Of The Angle Port B (Bypass)
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
• CV: 7.4/4.7 A/B Port
• Trim: Stainless Steel
• Runtime: <75 Secs
• Voltage: 24vac/24vdc,85-264vac
• Actuator: VA9203-BGA-2
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 0.75 in
• Nema Rating: Nema 2
• Valve Piping: 3-Way
• Actuator Type: Electric
• Cv: 7.4 CV
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Pattern: 3-way
• Size: 3/4 in
• Control Signal: Two Position
• Brand: JOHNSON CONTROLS
• MPN: VG1845BLH943BGA
