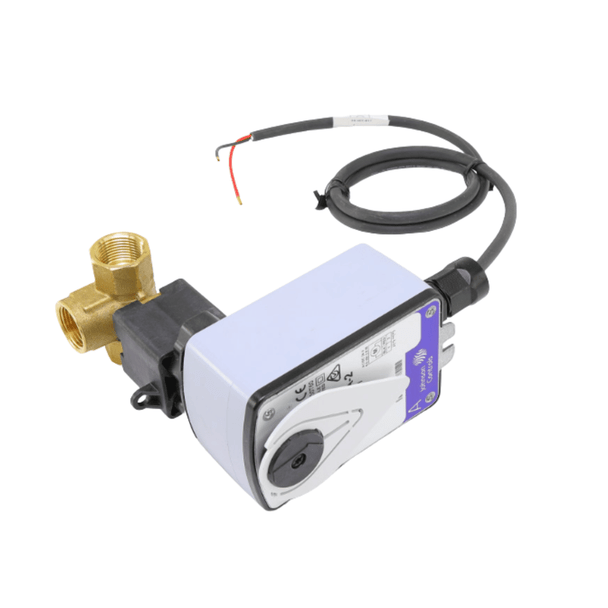

Johnson Controls VG1845BLH923BGA Ball Valve Assembly 3 Way, 3/4 in.

Product Description

The JOHNSON CONTROLS VG1845BLH923BGA ball valve assembly is a 3-way, 3/4 inch NPT valve with a 7.4 Cv. It features a forged brass body, stainless steel ball and blowout-proof stem, and a direct mount electric actuator. Designed for HVAC systems using hot water, chilled water, or 50/50 glycol solution.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This ball valve assembly provides accurate control under all load conditions and is suitable for various HVAC applications.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BLH923BGA
• Country of Origin: Unknown

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution For HVAC Systems
• Power Consumption: 5.0 VA Running, 2.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage On The In-Line Port A (Coil) And Linear Of The Angle Port B (Bypass)
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
• CV: 7.4/4.7 A/B Port
• Trim: Stainless Steel
• Runtime: <75 Secs
• Voltage: 24vac/24vdc,85-264vac
• Actuator: VA9203-BGA-2
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 0.75 in
• Valve Piping: 3-Way
• Close-Off Rating: 200 PSI
• Brand: Johnson Controls
• MPN: VG1845BLH923BGA
