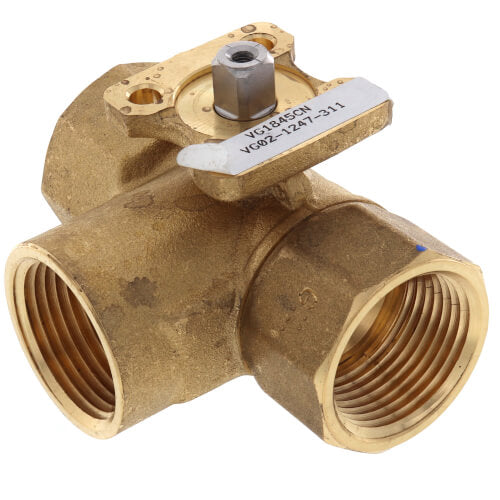

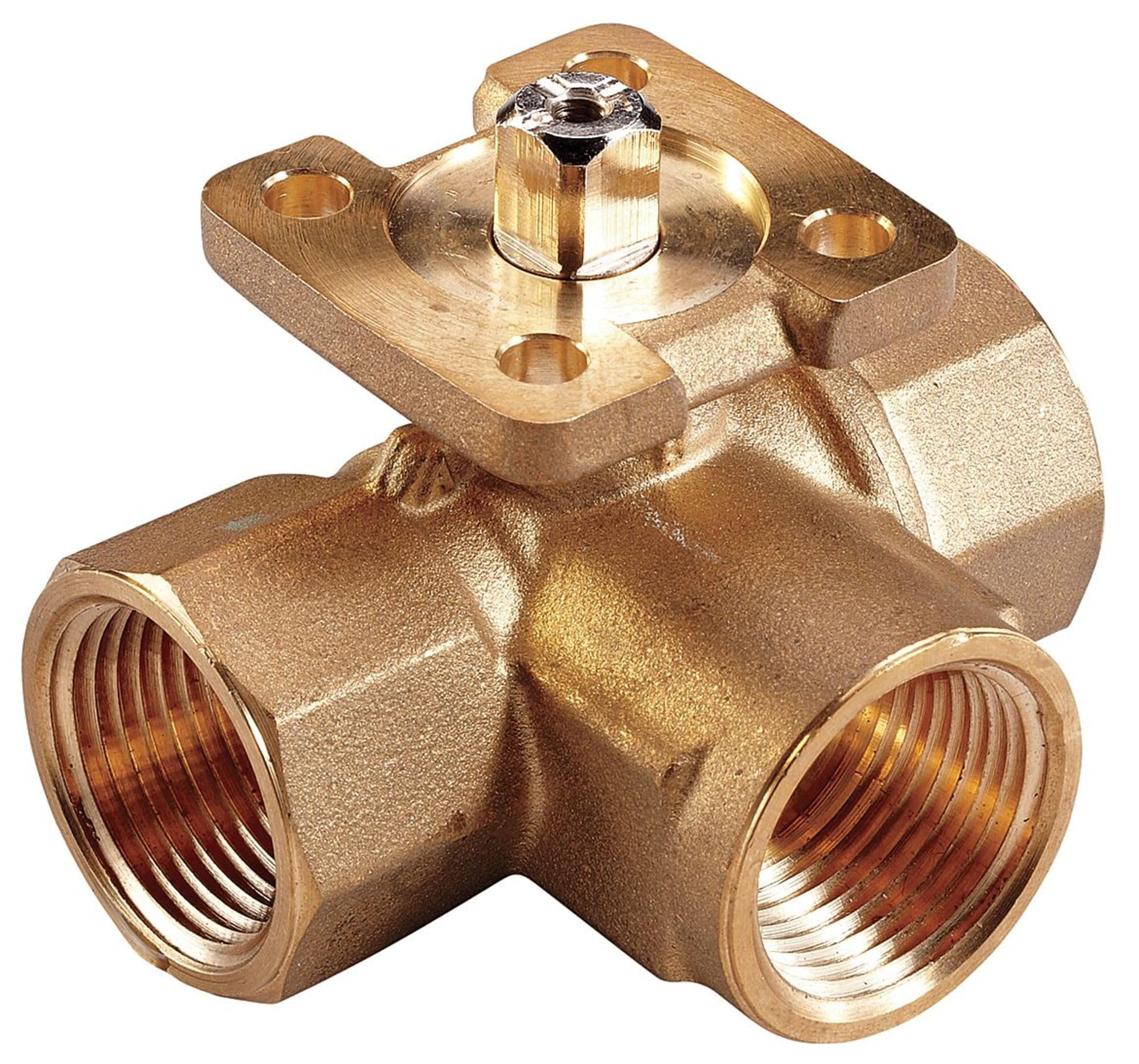

Johnson Controls VG1845BL Ball Valve, 3 Way, 3/4 in. 7.4 Cv

Product Description

The JOHNSON CONTROLS VG1845BL ball valve is designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in HVAC systems. This 3-way valve features a forged brass body and stainless steel ball and blowout-proof stem. It is suitable for use with 50/50 glycol solutions.

• Maintenance-Free Design, Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability, Provides Accurate Control Under All Load Conditions
• Graphite-Reinforced Polytetrafluoroethylene (PTFE) Seats

Product Highlights

This ball valve is designed for durability and accurate control in HVAC applications, offering a maintenance-free design and high rangeability.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845BL
• Country of Origin: Mexico

Technical Specifications

• Service: Hot Water, Chilled Water, 50/50 Glycol Solutions, And 15 psig Saturated Steam For HVAC Systems
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage Of In-Line Port A (Coil) And Linear Of Angle Port B (Bypass)
• Operating Conditions: -22 F To 280 F (-30 C To 140)
• Brand: Johnson Controls
• Product Type: VALVE
• Size: 3/4IN
• End Connection: Threaded
• Material: Brass
• Port Type: 7.4/4.7 Cv
• Pressure: 200PSIG Close Off
• Seal Material: PTFE
• Application: HVAC System
• Manufacturer: Johnson Controls Inc
• Product Group: BISS
• Model / MPN: VG1845BL
• Number of Items: 1.0
• CV: 7.4/4.7 A/B Port
• Trim: Stainless Steel
• Assembly: Valve Only
• Connection: NPT
• Valve Size: 0.75 in
• Valve Piping: 3-Way
• Close-Off Rating: 200 PSI
• Body Pattern: 3-Way
• Flow Capacity (Cv): 7.4
• Fluid Temperature Range: -22° to 212°F
• Includes [Specifications]: Valve Only
• Material [Specifications]: Stainless Steel Trim
• Valve Type [Specifications]: 3-Way
• For Use With [Specifications]: M9000 or VA9000 Series Actuators
• Power Source [Specifications]: Electric Actuator
• Connection Size [Specifications]: 3/4 in
• Connection Type: (F)NPT
• Max. Water Temp. [Specifications]: 284 Degrees F
• Coefficient of Volume [Specifications]: 7.4
• Safe Working Steam PSI [Specifications]: 15 with Thermal Spacer
• Safe Working Water PSI [Specifications]: 580 psi
• Valve Only/Actuator Included [Specifications]: Valve Only
• Type: Valve Only
• Actuator Type: Electric
• Cv: 7.4 CV
• Trim Material: Stainless Steel
• Pattern: 3-way
• Port Connection Size: 3/4 in
• Port Connection Gender: Female
• Port Connection Type: NPT
• Cv Flow Rate (gpm): 7.4
• Bypass Cv Flow Rate (gpm): 4.7
• Fluid Temperature - Minimum: -22 °F
• Fluid Temperature - Maximum: 284 °F
• Fluid Service: Steam; Water
• Body Material: Brass
• Ball Material: Stainless Steel
• Gasket Material: EPDM
• Stem Material: Stainless Steel
• Disk Material: Polyphthalamide Resin
• Seat Material: Graphite-Reinforced PTFE
• Includes Characterizing Disk: Disk Included
• Specific Valve Action: Stem Down to Close
• Leakage Rate: 1 %
• Rangeability: 500:1
• Resistance Properties: Wear Resistant
• ANSI Rating: ANSI Leakage Class IV
• Compatible With Series: VG1000
