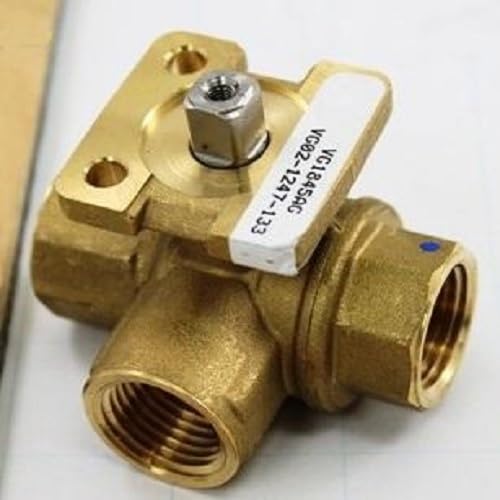

Johnson Controls VG1845AG+9T4IGA Ball Valve Three-Way Stainless Steel Trim

Product Description

The Johnson Controls Model VG1845AG Three-Way Ball Valve integrates advanced control technology to manage water flow in HVAC systems. It seamlessly adjusts to varying demands using its high-quality non-spring-return actuator.

• Designed for both hot and chilled water, compatible with low-pressure steam.
• Operational with a range of Johnson Controls actuators, including models from the VA9104, M9106, M9109, and M9100 series.
• Supports on/off, floating, or proportional control methods.

Product Highlights

VG1000 Series valves ensure reliability and functionality in commercial heating and cooling systems. The forged brass body enhances durability and withstands up to 580 psig of static pressure.

Product Information

Technical Specifications

• Valve Type: Ball, three-way, with non-spring-return actuator
• Material: Forged Brass Body
• Size: 1/2 inch to 2 inches (DN15 to DN50)
• Pressure Rating: 580 psig static
• Control Type: On/off, floating, proportional
• Compatible Actuators: Johnson Controls VA9104, M9106, M9109, M9100, VA9203, VA9208 Series
