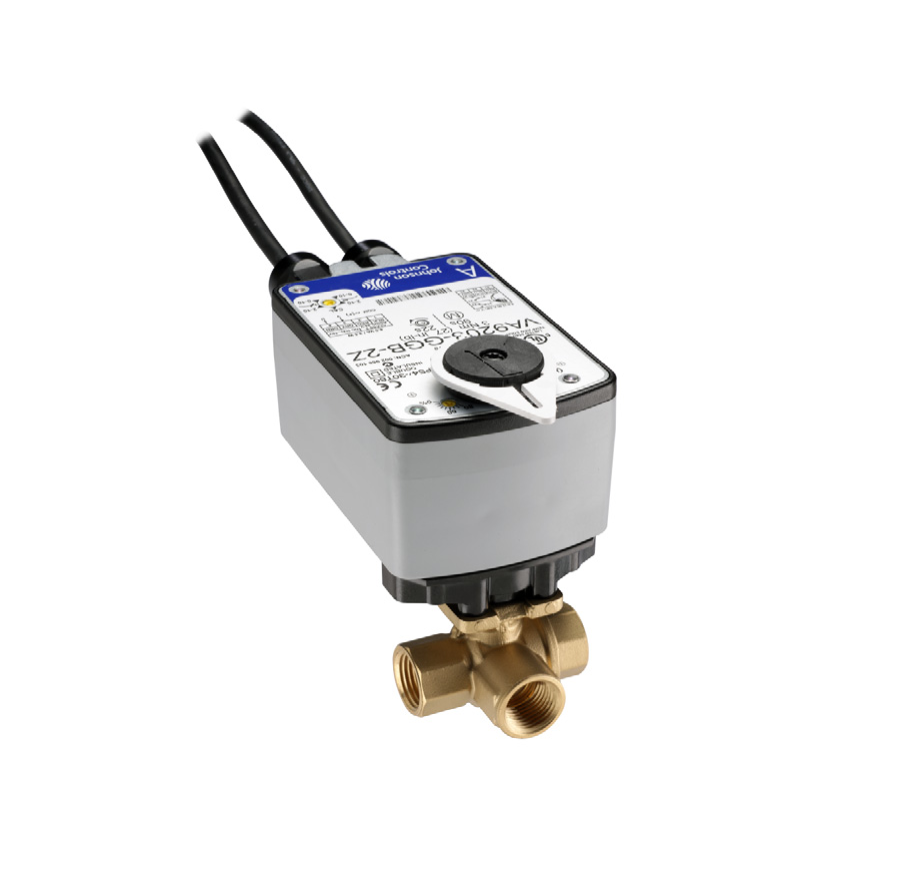

Johnson Controls Vg1845ab+9a4gga Ball 3-Way w/ Electric Actuator

Product Description

The JOHNSON CONTROLS VG1845AB+9A4GGA is a 1/2" 3-Way Control Valve suitable for hot water, chilled water, and up to 50% glycol solutions. It operates on 24 VAC with a proportional input signal and features a non-spring return. The valve includes stainless steel trim and a NEMA 2 enclosure.

• Suitable for hot water, chilled water, and up to 50% glycol solutions
• Operates on 24 VAC with a proportional input signal
• Features stainless steel trim and a NEMA 2 enclosure

Product Highlights

This ball valve is designed for precise control in HVAC systems, offering reliable performance with its stainless steel trim and electric actuator.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1845AB+9A4GGA

Technical Specifications

• TYPE: BALL VALVE
• SIZE: 00.50 IN.
• Cv: 000.00 - 000.99
• INPUT SIGNAL: PROPORTIONAL
• INPUT POWER: 24 VAC
• FAIL POSITION: NON FAILSAFE
• AUX SWITCH: NO
• CONNECTION: FEMALE NPT
• TRIM MATERIAL: STAINLESS STEEL
• ENCLOSURE: NEMA 1 | NEMA 2
• CABLE/TERMINAL: CABLE
• CHARACTERIZED: YES
• HIGH TEMPERATURE: NO
• NSF CERTIFIED: NO
• FAST ACTING: NO
• POSITION FEEDBACK: 0..10 VDC | 2..10 VDC
