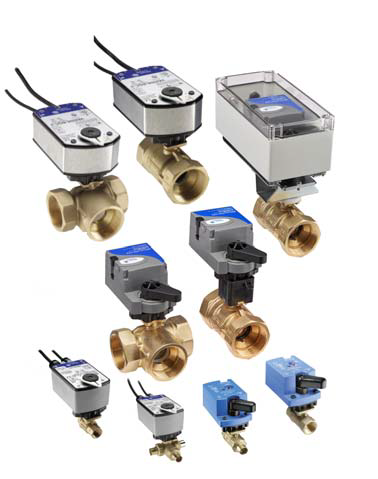

Johnson Controls VG1841FS+958GGC Ball Valve Assembly, 3 Way, 2 in.

Product Description

The Johnson Controls VG1841FS+958GGC is a three-way ball valve assembly designed for various fluid control applications. This valve provides reliable performance in hot water, chilled water, and glycol solutions. It features a forged brass body with a chrome-plated ball and a nickel-plated blowout-proof stem. The valve operates with an electric actuator and has a spring return mechanism of 177 lb-in.

• Flow rate of 46.8 Cv
• Electric actuator with 24 VAC supply
• Maintenance-free design with over 200,000 full stroke cycles

Product Highlights

This product ensures accurate control under various load conditions with a 500:1 rangeability. It is capable of performing without failure in contaminated water.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1841FS+958GGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA running, 5.5 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage of in-line port A (coil) and linear of angle port B (bypass)
• Operating Conditions: -40°F to 140°F (-40°C to 60°C)
• Electrical Connection: 48 in. 18 AWG appliance cable with integral 3/8 in. FMC connectors
