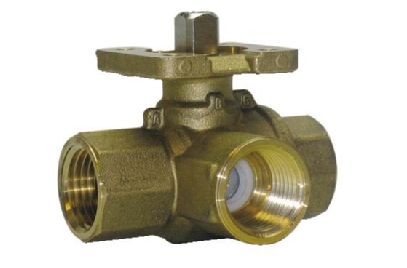

Johnson Controls VG1841DP958BGA Ball Valve Assembly 3 Way 1-1/4 in

Product Description

The Johnson Controls VG1841DP958BGA is a three-way ball valve assembly designed for HVAC applications. It features a one and one-quarter inch connection with a maintenance-free design suitable for various fluids.

• NPT connection type for easy installation
• Durable forged brass body with a chrome plated brass ball
• Electric actuator with a 177 lb-in spring return mechanism

Product Highlights

This valve assembly operates effectively without frequent maintenance and can handle hot water, chilled water, and glycol solutions. It is built to perform reliably in environments affected by iron-oxide contaminated water.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1841DP958BGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Power Consumption: 6.1 VA Running, 1.2 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage Of In-Line Port A (Coil) And Linear Of Angle Port B (Bypass)
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
