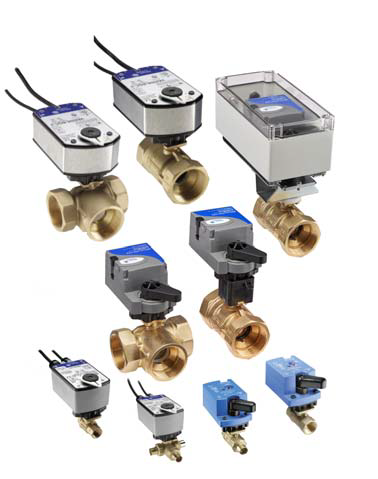

Johnson Controls VG1841DP+958GGC Ball Valve Assembly 3 Way 1-1/4 in

Product Description

The Johnson Controls VG1841DP+958GGC is a three-way ball valve assembly designed for HVAC control. This product features a one and one-quarter inch connection size and is engineered to manage water flow in various applications. The valve maintains high performance with a maintenance-free design.

• Compatible with hot water, chilled water, and 50/50 glycol solutions.
• Designed for over 200,000 full stroke cycles.
• Proportional control with a rangeability of 500:1.

Product Highlights

The Johnson Controls ball valve assembly is a reliable choice for control systems in HVAC applications, ensuring durability and efficient performance in water flow management.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1841DP+958GGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage Of In-Line Port A (Coil) And Linear Of Angle Port B (Bypass)
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
