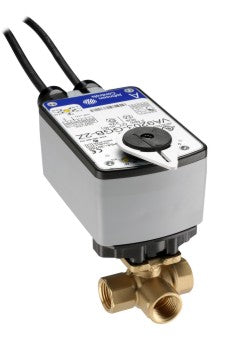

Johnson Controls VG1841BG943BUA Ball Valve Assembly 3 Way 3/4 in.

Product Description

The Johnson Controls VG1841BG943BUA is a robust ball valve assembly designed for HVAC systems. This three-way ball valve is suitable for various applications, providing precise control of hot and chilled water. It features a forged brass body and a chrome-plated brass ball which ensures reliability and durability.

• Maintenance-free design with a lifespan exceeding 200,000 full stroke cycles.
• NPT connection with a capacity of 4.7 Cv.
• Direct mount electric actuator with spring return functionality.

Product Highlights

This valve assembly operates efficiently with an on/off control system using a wide voltage range from 85 to 264 VAC, making it ideal for diverse situations.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1841BG943BUA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Power Consumption: 0.06 Amp Running, 0.02 Amp Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage In-Line Port A and Linear Angle Port B
• Operating Conditions: -22 F to 140 F (-30 C to 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables
