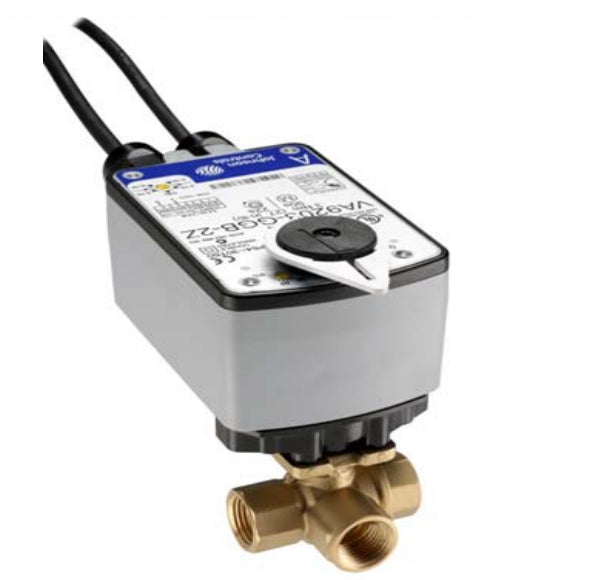

Johnson Controls VG1841BG923GGA Three-Way Plated Brass Trim NPT Ball Valve with VA9203-GGA Electric Actuator Without Switch

Product Description

The Johnson Controls VG1841BG923GGA is a three-way plated brass trim ball valve. This valve features a NPT connection and is designed with the VA9203-GGA electric actuator for efficient operation. It ensures seamless control in HVAC systems.

• Designed for hot or chilled water systems
• Compatible with various Johnson Controls actuators
• Built for durability and reliable performance

Product Highlights

This valve is essential for regulating flow in HVAC applications.

Product Information

Standard Information

• Manufacturer: Johnson Controls, Inc
• Model: VG1841BG923GGA

Technical Specifications

• Type: Three-Way Valve
• Size: Three-Quarter Inch (3/4 NPT)
• Flow Capacity: 4.7 Cv
• Power Requirements: 24V
• Fail Safe Mode: Port A Open, Spring Return
• Fluid Temperature Range: Twenty-Three to Two Hundred Three Degrees Fahrenheit
• Position Feedback: 0(2) to 10 VDC
• Electrical Connections: One Hundred Twenty Inches (3.05 m) 19 AWG Plenum Cable
