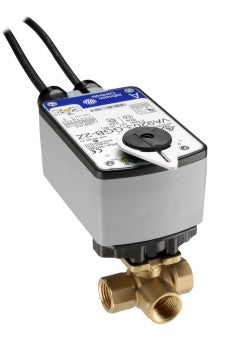

Johnson Controls VG1841BG+943BUB Ball Valve Assembly, 3 Way, 3/4 in.

Product Description

The Johnson Controls VG1841BG+943BUB is a three-way ball valve assembly designed for HVAC systems. This model features a three-quarter inch connection and is built to handle high flow rates with a coefficient of flow (Cv) rating of 4.7. The valve is constructed with a forged brass body for durability and is capable of operating with a direct mount electric actuator.

• Maintenance-free design
• Suitable for hot and chilled water applications
• Operates in a temperature range of -22 F to 140 F

Product Highlights

This valve assembly is built for long-lasting performance, with a projected life of over 200,000 full stroke cycles in challenging conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1841BG+943BUB

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 0.06 Amp Running, 0.02 Amp Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage Of In-Line Port A (Coil) And Linear Of Angle Port B (Bypass)
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
