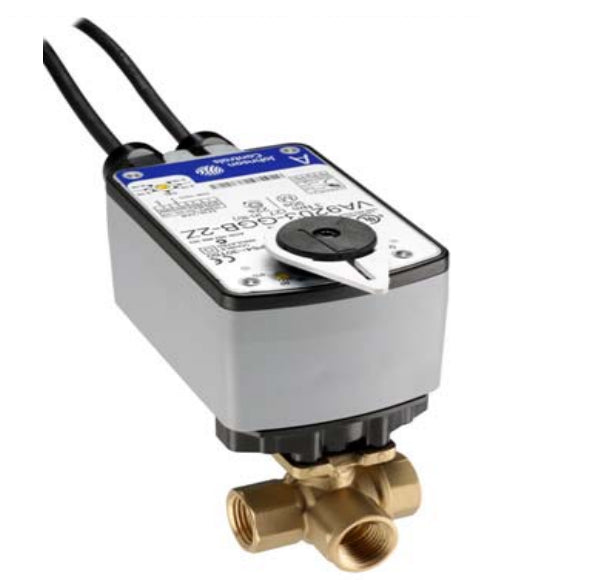

Johnson Controls VG1841BG+923AGA 3/4 NPT 3-Way Brass Valve w/ VA9203 On/Off Floating Point Actuator

Product Description

The Johnson Controls VG1841BG+923AGA is a three-way brass valve designed for HVAC systems. This actuator is suitable for regulating the flow of hot or chilled water and low pressure steam. The valve is compatible with various Johnson Controls actuators for effective on/off, floating, or proportional control.

• Power Requirements: 24 VAC +/- 20%, VDC +/- 10%
• Fluid Temperature Range: 23 degrees to 203 degrees Fahrenheit
• Flow Capacity: 4.7 Cv

Product Highlights

This valve is efficient for heating and cooling applications in residential or commercial settings. It provides reliable performance for controlling fluid flow in HVAC systems.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Part Number: VG1841BG+923AGA

Technical Specifications

• Body Pattern: 3-Way
• Actuator Type: On/Off, Floating Point
• Torque: 27 lb-in
• Material: Brass
• Connection Type: Threaded
• Fail Safe Mode: Port A Open, Spring Return
• Shipping Dimensions: 5 x 5 x 3 inches
• Weight: 5 lbs
