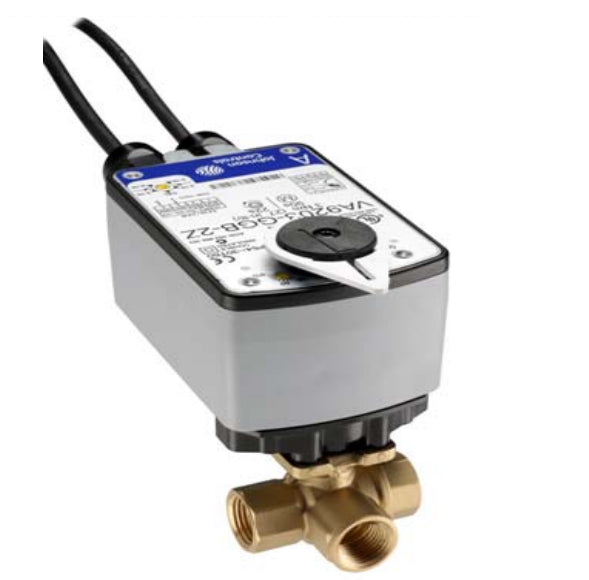

Johnson Controls VG1841AL943GGA 1/2 NPT 3-Way Brass Valve w/ VA9203 Proportional Actuator

Product Description

Johnson Controls VG1841AL943GGA is a 1/2 NPT 3-way brass valve equipped with a VA9203 proportional actuator. This valve features a spring return with port A closed and a flow capacity of seven point four Cv. It is suitable for regulating the flow of hot or chilled water and, in some cases, low pressure steam within HVAC systems. The valve can be integrated with Johnson Controls actuators for effective control.

• Flow capacity of 7.4 Cv
• Spring return with port A closed
• Compatible with various Johnson Controls actuators

Product Highlights

This valve is designed for heating, ventilating, and air conditioning systems to optimize flow control.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• MPN: VG1841AL943GGA

Technical Specifications

• Size: 1/2 inch
• Flow Capacity (Cv): 7.4
• Torque: 27 lb-in
• Material: Brass
• Actuator Type: Proportional
• Fail Safe Mode: Port A Closed, Spring Return
• Connection Type: Threaded
• Fluid Temperature Range: 23°F to 203°F
