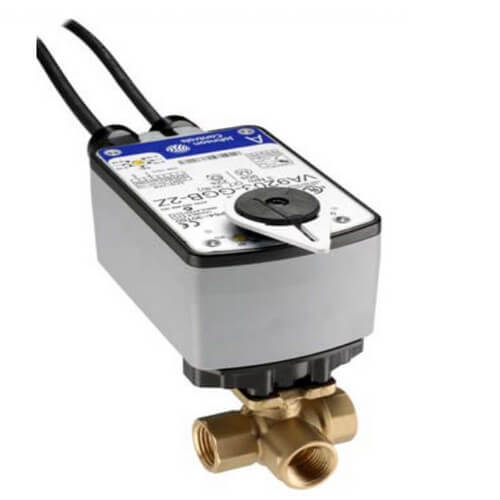

Johnson Controls VG1841AL923GGA Model VG1841AL Three-Way Plated Brass Trim NPT Ball Valve with Model VA9203-GGA Port A Open Spring-Return with Electric Actuator Without Switch

Johnson Controls VG1841AL923GGA Model VG1841AL Three-Way Plated Brass Trim NPT Ball Valve with Model VA9203-GGA Port A Open Spring-Return with Electric Actuator Without Switch

Brand: JOHNSON CONTROLS
SKU: VG1841AL923GGA
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$359.94
$359.94
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Johnson Controls VG1841AL923GGA is a three-way brass valve designed to control water flow in HVAC systems. This model includes a proportional actuator for efficient operation.

  • Flow capacity of 7.4 Cv
  • Compatible with low pressure steam
  • Threaded connections for easy installation

Product Highlights

This valve is suitable for both heating and cooling applications.

Product Information

Standard Information

  • Manufacturer: Johnson Controls
  • Model Number: VG1841AL923GGA

Technical Specifications

  • Flow Capacity: 7.4 Cv
  • Power Requirements: 24 VAC +/- 20%, VDC +/- 10%
  • Position Feedback: 0(2) to 10 VDC
  • Material: Brass
  • Actuator Type: Proportional
  • Connection Type: Threaded
  • Fluid Temperature Range: 23°F to 203°F
  • Fail Safe Mode: Port A Open, Spring Return
