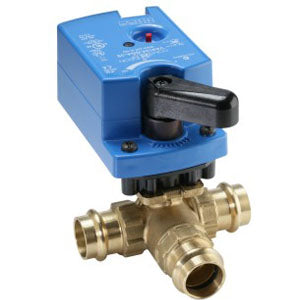

Johnson Controls VG1841AG+9A4AGA 3-Way Brass Valve with Electric Actuator

Product Description

The Johnson Controls Ball Valve model VG1841AG+9A4AGA regulates the flow of hot or chilled water and in some models, low-pressure steam within HVAC systems. This product is engineered for direct or remote mounting and couples with various Johnson Controls Non-Spring Return and Spring-Return Electric Actuators such as VA9104, M9106, M9109, and VA9203 for precise flow control.

• Resilient forged brass body enhancing durability and performance.
• Compatible with wide-ranging actuators for flexible application in different systems.
• Facilitates both on/off and modulating control for varying environmental requirements.

Product Highlights

Johnson Controls ball valves and actuators are known for reliability and efficiency in controlling fluid flow in heating and cooling applications. Ideal for use in commercial buildings, these valves ensure optimal system performance and energy efficiency. The VG1841AG+9A4AGA model offers straightforward integration and robust construction for prolonged service life.

Technical Specifications

• Body Material: Brass
• Type: 3-Way Ball Valve
• Connection Type: NPT threaded
• Size: 1/2 inch NPT
• Flow Capacity: 4.7 Cv
• Operating Pressure: up to 580 psig
• Temperature Range: 23 to 203 degrees Fahrenheit
• Actuator Compatibility: VA9104, M9106, M9109, VA9203
