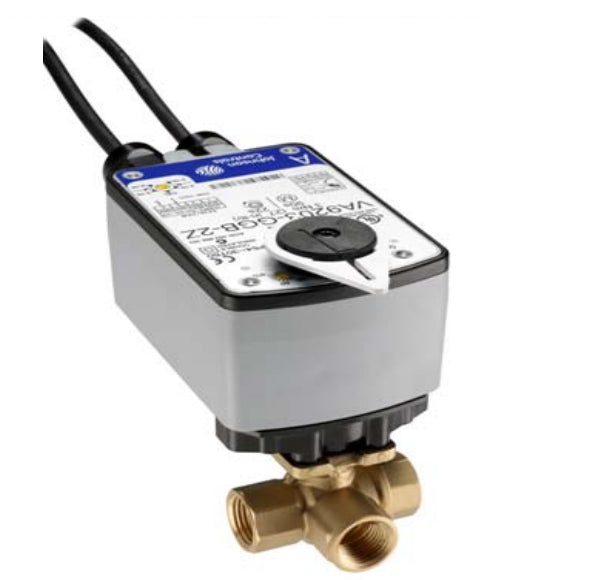

Johnson Controls VG1841AG+923GGA Three-Way NPT Ball Valve with 24V Electric Actuator

Product Description

The Johnson Controls VG1841AG+923GGA is a three-way plated brass trim NPT ball valve with a VA9203-GGA-2Z 24V electric actuator. It is suitable for various applications in HVAC systems, refrigeration, medical equipment, and process control systems.

• 24V proportional control
• 4.7 Cv flow capacity
• Three-way brass valve

Product Highlights

This three-way ball valve efficiently regulates the flow of hot or chilled water and low-pressure steam in response to HVAC system demands.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Model: VG1841AG+923GGA
• Brand: Johnson Controls

Technical Specifications

• Item Number: VG1841AG+923GGA
• Flow Capacity (Cv): 4.7
• Power Requirements: 24V AC +/- 20%, VDC +/- 10%
• Position Feedback: 0(2) to 10 VDC
• Connection Type: Threaded
• Fluid Temperature Range: 23°F to 203°F
• Actuator Type: Proportional, 0(4) to 20 mA, 0(2) to 10 VDC, with 500-ohm resistor
• Fail Safe Mode: Port A Open, Spring Return
• Material: Brass
• Weight: 5 lbs
• Body Pattern: Three-Way
• Dimensions (inches): 6 x 6 x 5
