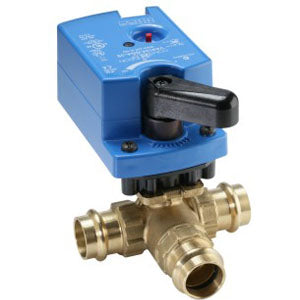

Johnson Controls VG1841AF-9A4IGA Model VG1841AF Three-Way Plated Brass Trim Valve with Model VA9104-IGA-2S Non-Spring-Return Electric Actuator

Product Description

The Johnson Controls VG1841AF-9A4IGA ball valve is engineered to regulate the flow of hot or chilled water, and for some models, low-pressure steam in HVAC systems. The VG1000 Series ball valves, available in sizes from 1/2 inch to 2 inches, are ideal for on/off, floating, or proportional control. These valves are factory or field mounted to Johnson Controls VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators.

• Forged brass body provides 580 psig static pressure rating
• Available in sizes 1/2 inch through 2 inches
• Suitable for regulating hot or chilled water, and low-pressure steam

Product Highlights

This three-way valve features a sturdy forged brass body and is compatible with various Johnson Controls actuators for versatile applications in HVAC systems. It supports on/off, floating, and proportional control, making it a reliable choice for professionals.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: VG1841AF-9A4IGA

Technical Specifications

• Power Requirements: 24 VAC +25%/-20%, Class 2, SELV
• Weather Shield Options: M9000-341
• Electrical Connection: 120 inches Plenum Cable
• 200 PSID Close Off Pressure
• Flow Capacity (Cv): 2.9
• Fluid Temperature Range: 23 to 203 degrees Fahrenheit
• Body Pattern: 3-Way
• Material: Brass
• Connection Type: Threaded
• Weight: 5 lbs
• Shipping Dimensions: 5 inches Depth, 5 inches Width, 3 inches Height
• Valve Install Instructions: VG1841AF-9A4IGA-install.pdf
• Actuator Install Instructions: VG1841AF-9A4IGA-9104-actuator.pdf
