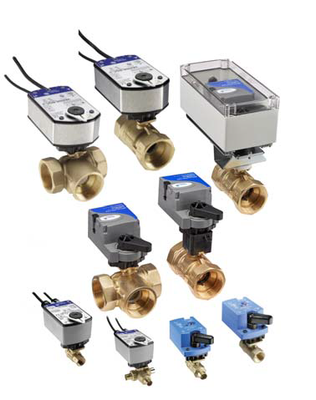

Johnson Controls VG1841AF+9A4AGA 1/2 Three-Way Plated Brass Trim NPT End Connections Ball Valve with VA9104 Electric Actuator

Product Description

The Johnson Controls VG1841AF+9A4AGA 1/2 inch Three-Way Plated Brass Valve is designed for regulating the flow of hot or chilled water in HVAC systems. This reliable unit combines a ball valve with the VA9104-AGA-2S non-spring-return electric actuator, ensuring efficient control.

• Plated brass body with NPT end connections
• Non-spring-return electric actuator
• Suitable for hot and chilled water systems

Product Highlights

Built with a dependable plated brass body, the VG1841AF+9A4AGA provides a 580 psig static pressure rating. It offers precise control and is compatible with HVAC applications.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1841AF+9A4AGA

Technical Specifications

• Size: 1/2 inch
• Flow Capacity (Cv): 2.9
• Voltage: 24V
• Power Rating: 3W
• Body Pattern: Three-Way
• Connection Type: Threaded
• Actuator Type: On/Off, Floating Point
• Fail Safe Mode: Non-Spring Return
• Fluid Temperature Range: 23°F to 203°F
