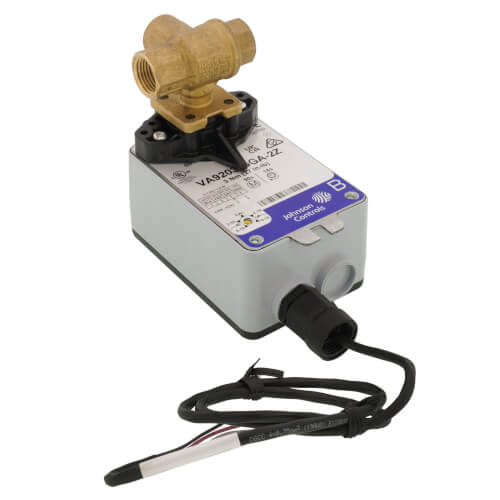

Johnson Controls VG1841AF+923GGA Model VG1841AF Three-Way Plated Brass Trim NPT Ball Valve with Model VA9203-GGA-2Z Port A Open Spring-Return with Electric Actuator

Product Description

The Johnson Controls VG1841AF+923GGA Three-Way Plated Brass Trim NPT Ball Valve is designed to regulate the flow of hot or chilled water and low-pressure steam. This model belongs to the VG1000 Series, which features valves available in sizes from one-half inch to two inches. The valve is connected to the VA9203-GGA-2Z Spring-Return Electric Actuator, making it suitable for on/off and proportional control applications.

• Three-way NPT ball valve
• Plated brass trim
• Electric actuator with spring return

Product Highlights

Ideal for HVAC systems, this ball valve provides efficient regulation of fluids in your system. Its forged brass body ensures durability and long-lasting performance.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1841AF+923GGA

Technical Specifications

• Flow Capacity (Cv): 2.9
• Body Pattern: Three-Way
• Connection Type: Threaded
• Material: Brass
• Torque: 27 lb-in
• Actuator Type: Proportional, with 500 ohm resistor, 0 (4) to 20 mA, 0 (2) to 10 VDC
• Fail Safe Mode: Port A Open, Spring Return
• Fluid Temperature Range: 23 to 203 degrees Fahrenheit
• Shipping Depth: 5 inches
• Shipping Width: 5 inches
• Shipping Height: 3 inches
• Weight: 5 lbs
