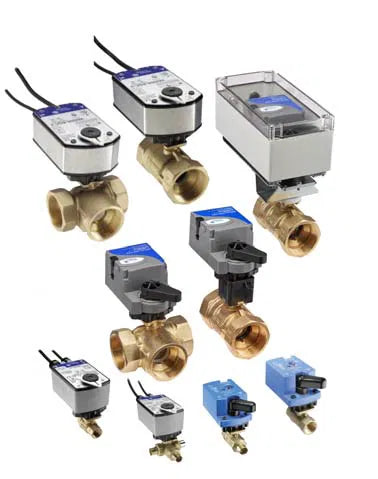

Johnson Controls VG1841AE+9T4AGA Model VG1841AE Three-Way Plated Brass Trim NPT End Connections Ball Valve with Model VA9104-AGA-3S Non-Spring-Return Electric Actuator

Product Description

The Johnson Controls VG1841AE+9T4AGA is a three-way plated brass trim ball valve with NPT end connections. It includes a VA9104-AGA-3S non-spring-return electric actuator. This valve is part of the VG1000 Series, and it is designed to regulate hot or chilled water flow, and in some models, low-pressure steam in HVAC systems.

• Forged brass body provides 580 psig static pressure rating
• Available in sizes 1/2 through 2 inches
• Suitable for on/off, floating, or proportional control

Product Highlights

The VG1841AE+9T4AGA ball valve offers reliable flow control for HVAC systems. Mounting options include factory or field installation.

Product Information

Standard Information

• Manufacturer: Johnson Controls, Inc
• Brand: Johnson Controls
• Product Group: BISS
• Model: VG1841AE
• MPN: VG1841AE+9T4AGA

Technical Specifications

• Static Pressure Rating: 580 psig
• Sizes Available: 1/2 through 2 inches
• Body Material: Forged Brass
• Connection Type: NPT End Connections
• Actuator Type: Non-Spring-Return Electric Actuator
