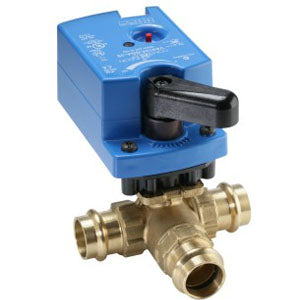

Johnson Controls VG1841AE+9A4IGA Three-Way Brass Ball Valve NPT End Connections Electric Actuator

Product Description

Johnson Controls VG1841AE+9A4IGA is a three-way brass ball valve designed for HVAC systems, offering effective regulation of hot or chilled water flow and low-pressure steam according to controller demands.

• Efficient control with VA9104 electric actuator
• Durable forged brass body for 580 psig static pressure rating
• Compatibility across a range of HVAC applications

Product Highlights

Integrates seamlessly with Johnson Controls VA9104, M9106, M9109, M9100 series non-spring return and VA9203, VA9208 series spring-return electric actuators.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1841AE+9A4IGA
• Valve Type: Ball Valve
• Connection Type: NPT threaded ends
• Pressure Rating: 580 psig static

Technical Specifications

• Size Range: 1/2 inch to 2 inches
• Material: Brass
• Actuator Type: Non-spring return/electric
• Power Requirements: 24 VAC +25%-20%
• Flow Capacity (Cv): 1.9
