Johnson Controls VG1841AD+9T4GGA Three-Way Brass Valve 24v 1/2 In.

Product Description

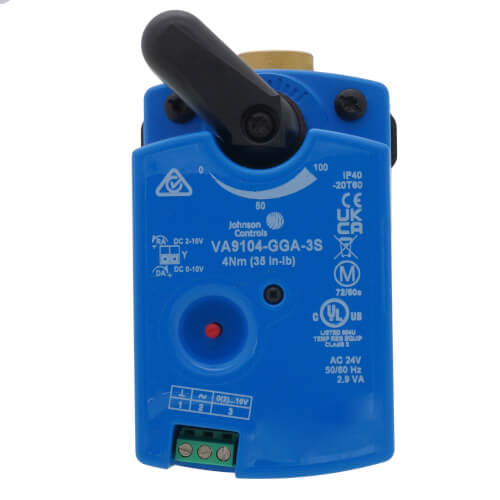

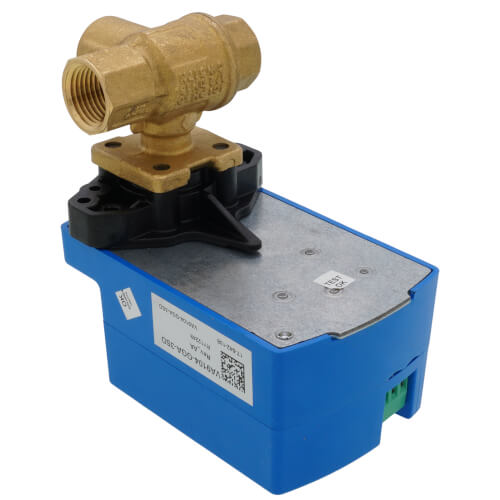

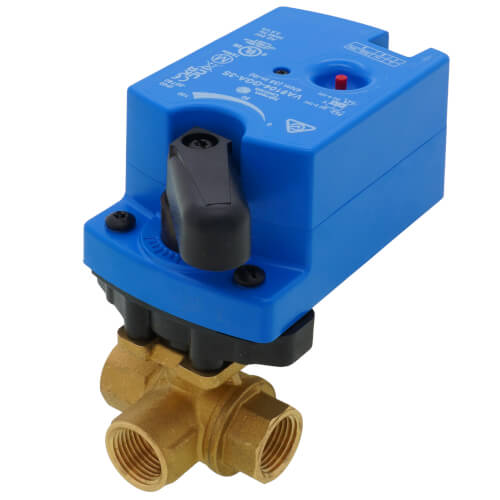

The Johnson Controls VG1841AD+9T4GGA is a three-way brass valve designed for HVAC systems. This valve is ideal for regulating the flow of hot or chilled water and low-pressure steam. It is equipped with a VA9104-GGA-3S non-spring-return electric actuator.

• Forged brass body provides 580 psig static pressure rating
• Designed for HVAC systems
• Compatible with multiple actuators

Product Highlights

This valve enhances the efficiency and control of HVAC systems. It is built with durable materials and can withstand high pressures, making it suitable for demanding environments.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Brand: Johnson Controls
• Product Type: Valve
• Country of Origin: United States

Technical Specifications

• MPN: VG1841AD+9T4GGA
• Size: 1/2 inch
• Power Requirements: 24 VAC +25%/-20%, Class 2, SELV
• Connection Type: Threaded
• Flow Capacity: 1.2 Cv
• Fluid Temperature Range: 23 to 203 degrees Fahrenheit
• Actuator Type: Proportional, with 500 ohm resistor, 0 (4) to 20 mA, 0 (2) to 10 VDC
• Fail Safe Mode: Non-Spring Return
• Dimensions: 8.15 inches length, 6.9 inches width, 3.7 inches height
• Weight: 2.24 lbs
