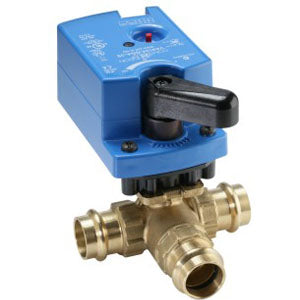

Johnson Controls VG1841AD+9A4IGA Three-Way Brass Valve 1/2 Inch NPT with Electric Actuator

Product Description

Explore the robustness of Johnson Controls VG1841AD+9A4IGA, a three-way brass ball valve equipped with a non-spring-return electric actuator, tailored for controlling the flow in HVAC systems. This valve is ideal for both hot and chilled water applications and low-pressure steam.

• High durability with a forged brass body, ensuring long-term use.
• Compatible with Johnson Controls VA9104, M9106, M9109, and M9100 series non-spring-return actuators for versatile control options.
• Handles pressures up to 580 psig, suitable for various industrial applications.

Product Highlights

This valve provides precise control with options for on/off, floating, and proportional control settings. It's designed for easy integration into existing systems with NPT end connections.

Technical Specifications

• Body Material: Brass
• Type: Three-way ball valve
• Connection Type: NPT threaded
• Pressure Rating: 580 psig static
• Control Type: On/off, floating, proportional
• Size: 1/2 inch
• Actuator Model: VA9104-IGA-2S
• Power Requirements: 24 VAC, Class 2, SELV
