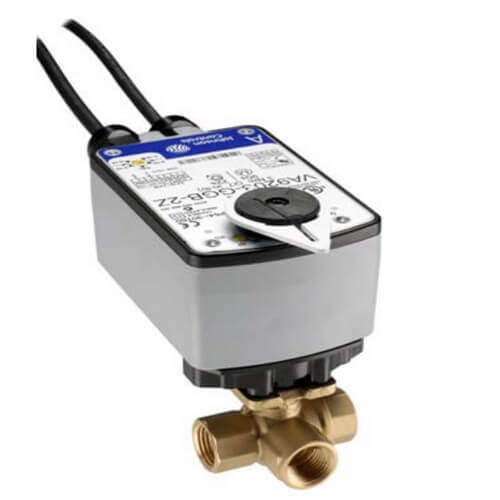

Johnson Controls VG1841AD+943GGA Three-Way Brass Valve with Electric Actuator

Product Description

The Johnson Controls VG1841AD+943GGA is a versatile three-way brass valve combined with the VA9203 electric actuator. This assembly is engineered to control the flow of hot, chilled water, and in certain models, low-pressure steam within HVAC systems. Sizes range from 1/2 inch to two inches, making it suitable for various piping requirements.

• High durability with a forged brass body.
• Static pressure rating of 580 psig.
• Compatible with Johnson Controls VA9104, M9106, M9109, and M9100 series actuator for precise flow management.

Product Highlights

Designed for both factory and field mounting, this valve supports on/off, floating, or proportional control configurations. This enhances its utility in building management systems.

Product Information

Standard Information

• Power Requirements: 24 VAC +/- 20%, VDC +/- 10%
• Position Feedback: 0(2) to 10 VDC

Technical Specifications

• Electrical Connections: 120 inches 19 AWG Plenum Cable
• Weather Shield Options: M9000-341 (For Field Assembly Only)
• Close Off Pressure: 200 PSID
• Material: Brass
• Body Pattern: Three-Way
• Actuator Type: Proportional, 0 (4) to 20 mA, 0 (2) to 10 VDC, with 500 ohm resistor
• Fail Safe Mode: Port A Closed, Spring Return
• Connection Type: Threaded
