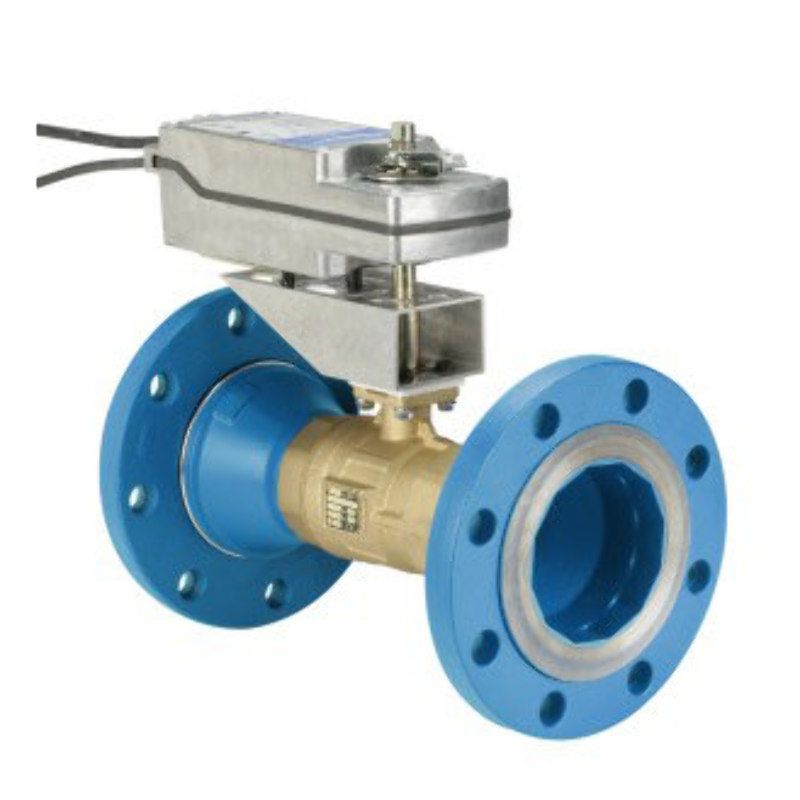

Johnson Controls VG12A5HW+94NGGC Ball Valve Assembly 2 Way 3 in.

Product Description

The Johnson Controls VG12A5HW+94NGGC is a two-way ball valve assembly designed for HVAC systems. This valve features a three-inch size and is built with a brass body, stainless steel ball, and stem. It operates with an electric actuator, offering a torque spring return of one hundred seventy-seven pound-inches and is suitable for twenty-four volt alternating current and zero to ten volt direct current proportional control.

• Flanged body design for secure installation.
• Maintenance-free operation exceeding two hundred thousand full stroke cycles.
• PTFE thermal spacer for thermal isolation between actuator and valve.

Product Highlights

This ball valve allows for accurate control under all load conditions and is capable of handling various fluids such as hot water, chilled water, and glycol solutions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG12A5HW+94NGGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, Glycol Solutions, and 25 psig Saturated Steam
• Power Consumption: 15.5 VA Running, 7.7 VA Holding
• Close-Off Pressure: 100 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 133 F
• Electrical Connection: 48 in. Halogen-Free Cable with 18 AWG Wire Leads
• Auxiliary Switches: 2
