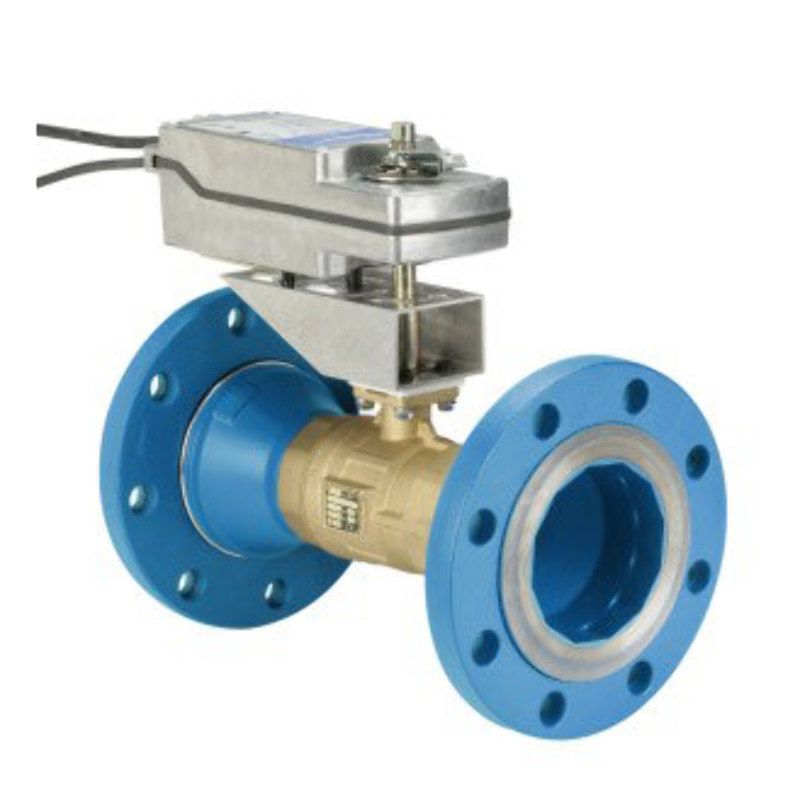

Johnson Controls VG12A5HW+92NBAA Ball Valve Assembly 2 Way 3 in.

Product Description

The Johnson Controls VG12A5HW+92NBAA is a two-way ball valve assembly designed for various HVAC applications. This three-inch valve features a flanged design and a brass body that ensures durability and reliability in demanding environments. It utilizes a stainless steel ball and stem for efficient performance.

• Maintenance-free design with a lifespan exceeding 200,000 full stroke cycles in contaminated water.
• Features a PTFE thermal spacer that provides thermal isolation between actuator and valve.
• Rangeability of 500:1 for precise control under varying load conditions.

Product Highlights

The valve operates effectively in hot water, chilled water, and glycol solutions, making it versatile for different HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG12A5HW+92NBAA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution and 25 psig saturated steam for HVAC systems
• Power Consumption: 0.25 A running, 0.13 A holding
• Close-Off Pressure: 100 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -40 F to 133 F (-40 C to 55 C)
• Electrical Connection: 48 inches halogen-free cable with 18 AWG wire leads
