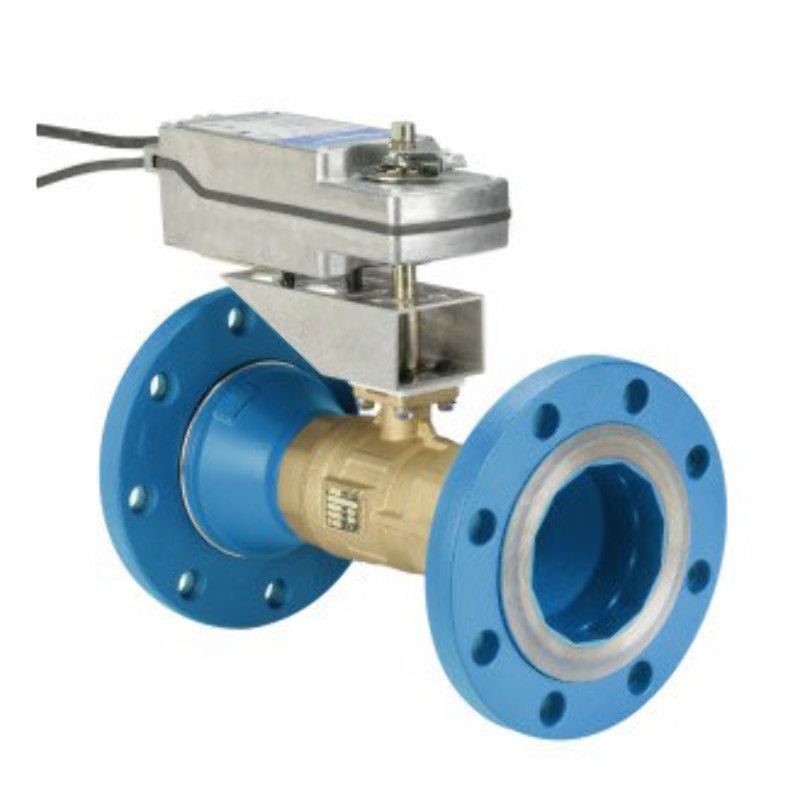

Johnson Controls VG12A5HV + 94NBAC Ball Valve Assembly, 2 Way, 3 in.

Product Description

The Johnson Controls VG12A5HV + 94NBAC is a reliable two-way ball valve assembly designed for HVAC systems. This valve features a brass body and is equipped with a stainless steel ball and stem. It includes an electric actuator which provides a spring return function rated at 177 lb-in and operates at 120 VAC.

• Flanged design with a flow coefficient (Cv) of 176.
• Maintenance-free operation with over 200,000 full stroke cycles.
• Suitable for hot water, chilled water, and glycol solutions.

Product Highlights

This ball valve ensures precise control and reliable performance under various load conditions thanks to its 500:1 rangeability.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG12A5HV + 94NBAC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Suitable for hot water, chilled water, 50/50 glycol solutions, and 25 psig saturated steam.
• Power Consumption: 0.25 A running, 0.13 A holding
• Auxiliary Switches: 2
• Close-Off Pressure: 100 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -40 F to 133 F (-40 C to 55 C)
• Electrical Connection: 48 in. halogen-free cable with 18 AWG wire leads
