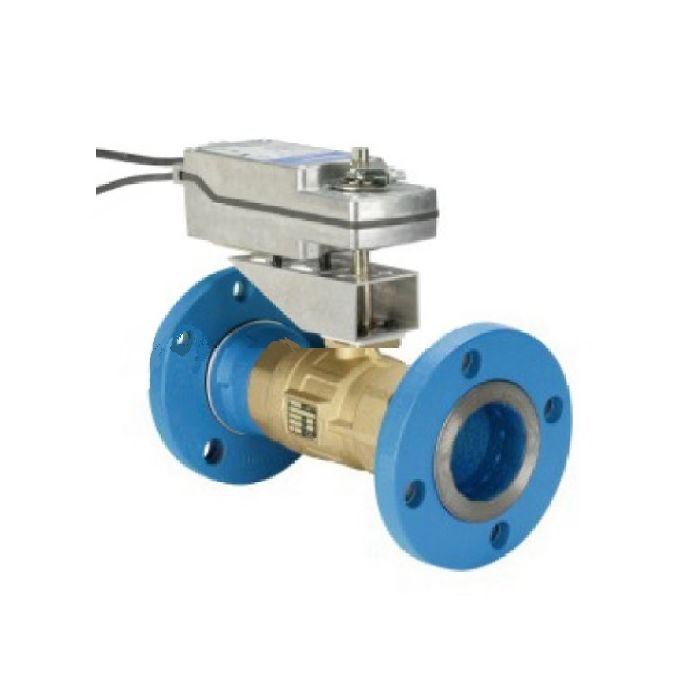

Johnson Controls VG12A5HV+94NAGC Ball Valve Assembly 2 Way 3 in. Replacement MPN

Product Description

The Johnson Controls VG12A5HV+94NAGC is a ball valve assembly designed for HVAC applications. This two-way valve features a three-inch flanged connection. It is built with a brass body and incorporates a stainless steel ball and stem for enhanced durability. The electric actuator provides reliable performance with a spring return capability.

• Maintenance-free operation
• Suitable for hot water and chilled water systems
• Rated for 25 psig saturated steam service

Product Highlights

This valve assembly excels in various HVAC systems, ensuring accurate control under different load conditions while handling contaminated water effectively.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG12A5HV+94NAGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, and 25 psig saturated steam
• Power Consumption: 15.5 VA Running, 7.7 VA Holding
• Auxiliary Switches: 2
• Close-Off Pressure: 100 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 133 F (-40 C to 55 C)
• Electrical Connection: 48 in. Halogen-Free Cable With 18 AWG Wire Leads
