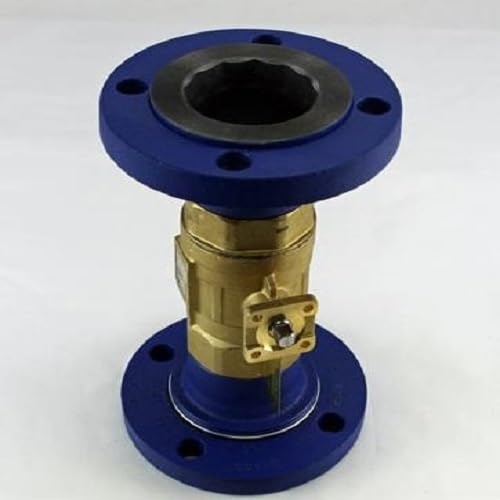

Johnson Controls VG12A5HU Flanged Ball Valve with Control Disk, Two-Way, 3 Size, 100 Closeoff psig, Control Port A 117 Cv, Control Port B 74 Cv

Product Description

The Johnson Controls VG12A5HU is a two-way flanged ball valve designed for the regulation of water flow in HVAC systems. It is suitable for use with hot water, chilled water, and glycol solutions. This valve is ideal for applications requiring control over water flow in heating and cooling systems.

• Close off Pressure Rating: 100 psi for Two-Way Valves
• Stainless Steel Ball and Stem Assembly – for high-temperature water operations
• Range ability of 500:1 – ensures accurate flow control

Product Highlights

The VG12A5HU provides reliable flow control with a maximum water temperature of 284 degrees Fahrenheit. It is compatible with M9000 series actuators.

Product Information

Standard Information

• Brand: Johnson Controls
• Product Type: Valve

Technical Specifications

• Connection Type: Flanged
• Connection Size: 3 inches
• Closeoff Pressure: 100 psi
• Max. Water Temp.: 284 degrees Fahrenheit
• Material: Stainless Steel Trim
• Valve Type: 2-Way
• For Use With: M9000 Series Actuators
• Coefficient of Volume: 134
• Safe Working Steam PSI: 15 with Thermal Spacer
• Safe Working Water PSI: 580 psi
• Country of Origin: Mexico
