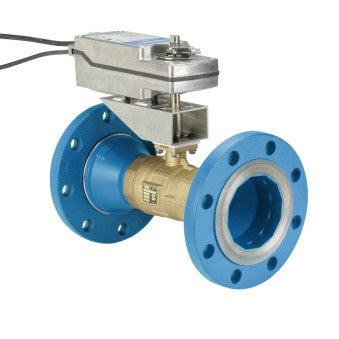

Johnson Controls VG12A5GU+94NAGC Ball Valve Assembly 2 Way 2-1/2 in

Product Description

The Johnson Controls VG12A5GU+94NAGC is a two-way ball valve assembly designed for HVAC applications. This valve features a brass body and stainless steel ball to enhance performance and durability. It is specifically made to operate in challenging conditions and is suitable for hot water, chilled water, and glycol solutions.

• Flanged design with a flow coefficient (Cv) of 117
• Electric actuator with a spring return torque of 177 lb-in and operates on 24 VAC
• Maintenance-free and capable of over 200,000 full stroke cycles

Product Highlights

The VG12A5GU+94NAGC valve offers reliability and precise control, making it ideal for various HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG12A5GU+94NAGC
• Min Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Power Consumption: 15.5 VA Running, 7.7 VA Holding
• Close-Off Pressure: 100 psig
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, 25 psig Saturated Steam
• Operating Conditions: -40 F To 133 F
• Flow Characteristic: Equal Percentage
• Electrical Connection: 48 in. Halogen-Free Cable With 18 AWG Wire Leads
• Auxiliary Switches: 2
• Housing: NEMA 2, IP54
