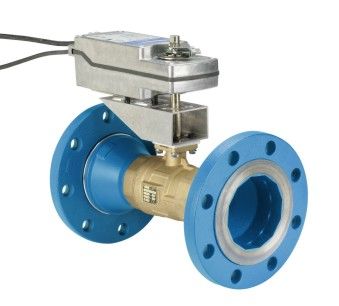

Johnson Controls VG12A5GU+94NAGA Ball Valve Assembly 2 Way 2-1/2 in

Product Description

The Johnson Controls VG12A5GU+94NAGA is a reliable ball valve assembly designed for various HVAC applications. Its flanged construction and robust materials ensure durability and efficiency in numerous operational environments.

• Maintenance-free design with a high stroke cycle performance
• Features a brass body and stainless steel ball and stem for longevity
• Electric actuator with 177 lb-in spring return

Product Highlights

This assembly is well-suited for hot water, chilled water, and glycol solutions, providing dependable control across diverse settings.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG12A5GU+94NAGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution And 25 psig Saturated Steam For HVAC Systems
• Power Consumption: 15.5 VA Running, 7.7 VA Holding
• Close-Off Pressure: 100 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 133 F (-40 C To 55 C)
• Electrical Connection: 48 in. Halogen-Free Cable With 18 AWG Wire Leads
