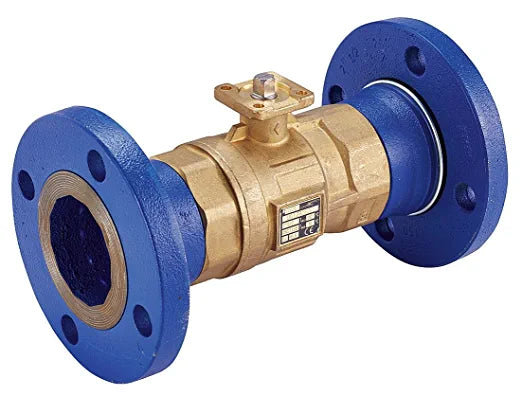

Johnson Controls VG12A5GU 2-1/2 Inch 2-Way Ball Valve 117Cv

Product Description

The Johnson Controls VG12A5GU 2-1/2 inch 2-way ball valve is engineered for dependable performance in HVAC systems, handling hot water, chilled water, and 50% glycol solutions. This valve is designed to meet the demands of temperature control applications.

• Maximum close-off pressure of 100 psi.
• Stainless steel ball and stem assembly for high-temperature operations.
• 500:1 range ability for precise flow control.

Product Highlights

Constructed with a 300 stainless steel ball and stem, and featuring an EPDM double O-ring stem seal, this valve ensures a tight shutoff and leak-free performance for up to 200,000 cycles in iron-oxide contaminated systems. Its Amodel flow characterizing disk delivers equal percentage flow characteristics for optimal temperature control.

Product Information

Technical Specifications

• Connection Type: Flanged.
• Material: Stainless Steel Trim.
• Operating Temperature: Up to 284 degrees Fahrenheit.
• Flow Coefficient (Cv): 117.
• Dimensions: Height: 8.01 inches; Width: 8.01 inches; Length: 8.01 inches.
• Weight: 34.02 lbs.
